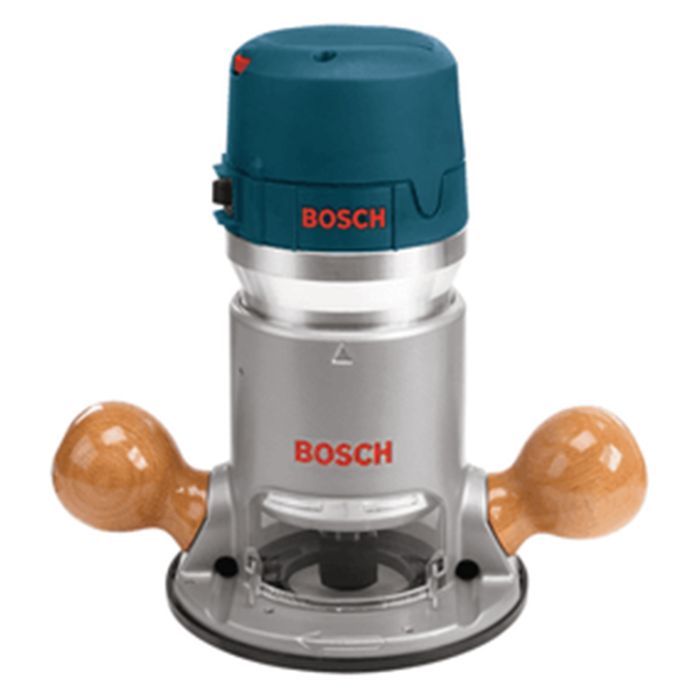

Bosch 1617EVS 6.0" 2.25 HP Corded Electronic Fixed Base Router

SKU
1617EVS
$199.00
Out of Stock?
12 Amp router motor combines ample power with adjustable speed settings, allowing users to glide along cut lines. Constant response circuitry stabilizes start-up torque. Microfine bit-depth adjustment. Rounded hardwood handles maximize user control. Right or left switch location for user preference and consistency (motor does not rotate during depth adjustment). Threaded three hole base pattern. One piece armature shaft. RA1161 fixed-base with system for adjusting bit height from above a router table. Fixed base has threaded holes for mounting to router table positioned in common 3 hole pattern. Double insulated. Power switch now includes dust-sealed power switch. Compatible with Optional RA1129 Template Guide Adapter Set: For easy change of Bosch quick-release template guides and common threaded template guides; includes RA1126 Template Guide Adapter and RA1100 Interface for Threaded Template Guides.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Bosch
Condition New
UPC 00034630473
Includes
  • 1/4" S. R. Collet Chuck 2 610 906 283
  • 1/2" S. R. Collet Chuck 2 610 906 284
  • 16mm Shaft Wrench 2 610 991 388
  • Collet Nut Wrench 2 610 992 417
  • Chip Shield 2 610 991 389
  • Fixed Base (RA1161)
  • T-Handle Hex Height Adjustment Wrench - 2610923193
  • 3 x 10-24 Screws for Table Mounting - 2610925813
Amperage 12.0 Amps
Electric Brake No
Horsepower 2.25 HP
Variable speed No
Warranty 1 Year
TypeRouter
Base Diameter6"
Base Opening3 3/4"
Collet Capacity1/4", 3/8", 1/2" and 8 mm
Depth Range (Fixed-Base)1 5/8"
Length6"
Speed (RPM)8,000 - 25,000 RPM
Subbase Opening2"
Voltage120 V AC
Weight8.3 lbs
Width10"
Suitable for Use withPlunge Base RA1166, Router Tables RA1141 Portable Benchtop Router Table, RA1171 Cabinet-Style Router Table, RA1181 Router Table, Undertable Router Base, RA1165, Offset Bit-Change Wrench Set for Easier Bit Change in Router Table RA1052, Router Guide RA1054, Template Guide System, RA1128 Template Guide Set, RA1129 Template Guide Adapter Set, Centering Device for Subbases and Attached Template Guides, RA1051, Dust Collection Attachments RA1175 Edge-forming Dust Hood, RA1172AT Two-Hood Dust Hood Set, RA1173AT Three-Hood Dust Hood Set
