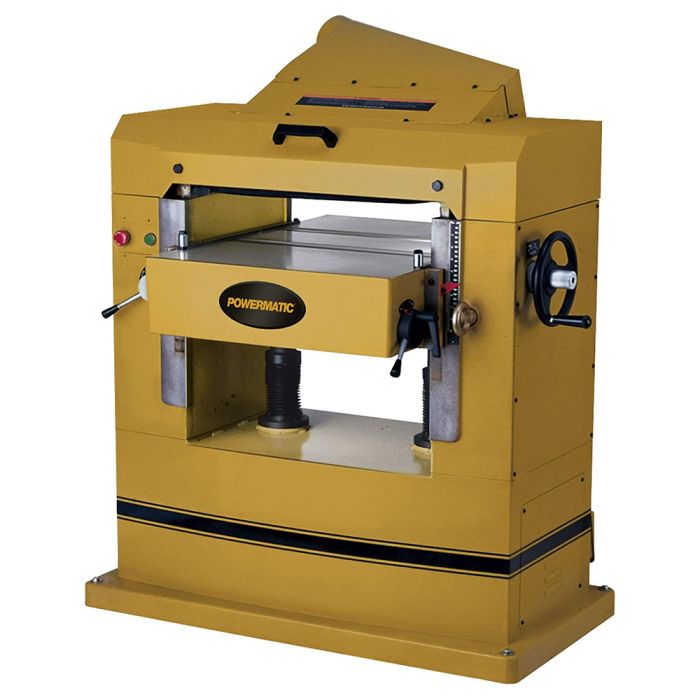

Powermatic 1791261 201 230V 22" Planer, 7.5HP/1Ph

SKU
1791261
$8,199.99
Ships direct from manufacturer?
This 1,300 lb. heavy-duty cast iron planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives. The hood comes standard with a 5 inch dust port for easy attachment to any dust collection system. The cutterhead is complete with four high speed steel knives and turns at 4,800 rpm producing 19,200 cuts per minute. The anti-kick back fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The well designed infeed and outfeed rollers are fitted with roller bearings for long roller life. The sectional infeed and chip breaker are specially designed to allow multiple boards to be planed at the same time. The adjustable bed roller facilitates both rough and finish planing. The solid steel outfeed roller is machined with small serrations to insure a smooth finish yet provide positive feeding. The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. You may easily raise the massive ribbed cast iron, ground finished table 1 /16 with each turn of the hand wheel. The model 201 is available with a 7 1 /2 horsepower, single-phase motor. This planer is perfect for the small to medium shop with continuous planing requirements.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
UPC 66275529697
Features
  • Straight knife cutterhead with 4 high speed steel knives gives a clean smooth cut
  • Segmented infeed roller with sectional chipbreaker for planing multiple height stock
  • All cast iron construction, the heavy cast iron table travels on two large lead scews
  • Roller bearing-mounted feed rollers for smooth operation and long life
  • Adjustable bed rollers allow smooth feeding of rough or finished workpieces
  • 2 feed speeds - 20/30 fpm - accommodates rough and fine finish work
  • Dust chute with 5 inch port for dust collection
PDFs
Horsepower 7.5 HP
Motor Phase 1 Ph
Stationary type Floor
Recommended Circuit Size50 Amps
Motor Voltage230 V
Prewired Voltage230 V
Dust Port Outside Diameter5"
Dust Collection Minimum CFM Required (CFM)900 CFM
Digital ReadoutInch / Metric
Column Diameter2 1/2"
Table Support2 Column
Table Size Length32 1/4"
Table Size Width24"
Bed Rollers Adjustable from Front2
Outfeed Roller Diameter3"
Segmented Infeed Roller Diameter3"
Infeed Roller Diameter3"
Feed Rate (FPM)20/30 FPM
Minimum Planing Length10"
Maximum Planing Thickness9 1/4"
Maximum Planing Width22"
Maximum Full Width Depth of Cut3/16"
Maximum Depth of Cut3/16"
Number of Knives4 Straight High Speed Steel Knives
Cuts Per Minute19,200 CPM
Cutterhead Diameter3 1/4"
Cutterhead Speed (RPM)4,800 RPM
Type of CutterheadStraight Knife
