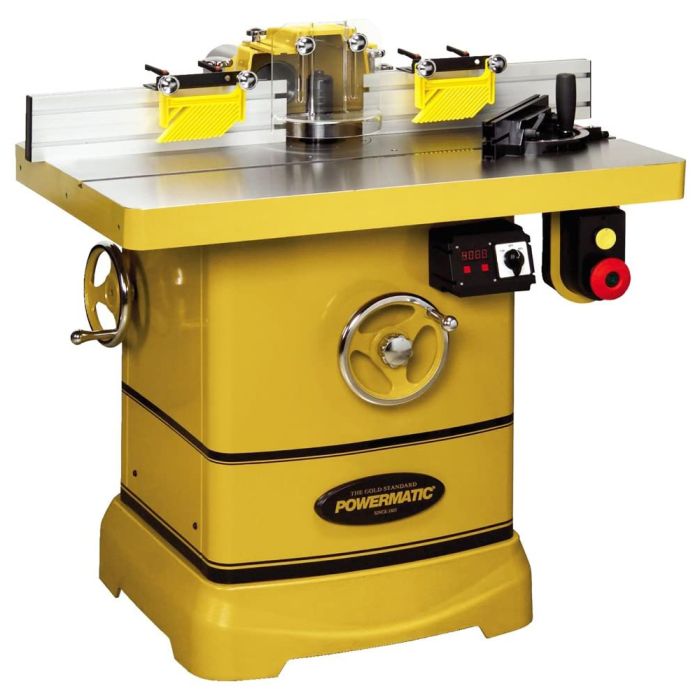

Powermatic 1280100C PM2700 230V Industrial Shaper, 3HP/Ph

SKU
1280100C
$4,599.99
Ships direct from manufacturer?
This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30 inch x 40 inch precision ground cast iron table includes a heavy duty miter gauge with an aluminum extruded support. The built-in, omni-directional caster system (patent pending) is retractable into the base. A quick-release lever allows fast speed and belt changes. The extruded aluminum fence has several T-slots so you can mount a wood face to create a no-clearance surface around any shaper or router bit. The fence also gives you the ability to quickly move the fence close to its final position, lock it in and then use the precision micro adjustments on each side of the cutter to dial in exactly the position you need. Adding to the precision of this machine is a digital readout for the spindle height. This allows making adjustments to within .001 inch in the spindle height, which is critical when aligning rail and stile cutters for those raised panel doors.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
UPC 66275590594
Features
  • Digital readout gives the use exact spindle height and allows for .001 inch adjustments
  • Micro adjust control knobs allow for precision adjustment for the fence
  • Integrated casters can be raised and lowered to mobilize shaper
  • Heavy duty cast iron base
  • Two speed reversible spindle speeds
  • Independently adjustable fence sides
  • Heavy duty 30 inch x 40 inch precision ground tabletop for smooth stock feeding
  • Superior clear cutter guard promotes safety, allows observation of the entire cut
  • Table predrilled and tapped for feeder mounting in two locations
Includes
  • 3/4" and 1 1/4" Spindles
PDFs
Horsepower 3 HP
Motor Phase 1 Ph
Stationary type Shaper
Warranty

5 Year

Recommended Circuit Size30 Amps
Motor Voltage230 V
Prewired Voltage230 V
Motor Current14 Amps
Electrical ControlsYes
Digital ReadoutsSpindle Height
Dust Collection Minimum CFM Required600 CFM
Dust Port Outside Diameter4"
Fence Size Length18 3/4"
Fence Size Height4 7/8"
Table Height from Floor35 1/2"
Table Size40" x 30"
Table Inserts2 1/2" x 4 1/8" x 5 3/4"
Table Opening Diameter7.33"
ReversibleYes
Spindle Travel4"
Spindle Size Under Nut3/4" Spindle (3-1/2), 1" Spindle (4-7/8), 1 1/4" Spindle (5-1/8)
Spindles Included3/4", 1 1/4"
Maximum Spindle Diameter1 1/4"
Spindle Speed (RPM)7,500, 10,000 RPM
