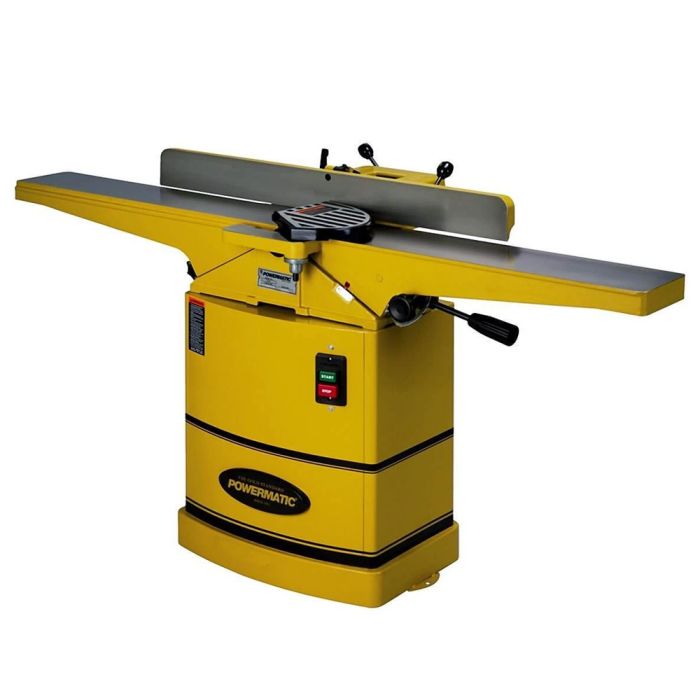

Powermatic 1791279DXK 54A 115/230V 6" Jointer with Quick-Set Knives, 1HP/1Ph

SKU
1791279DXK
$1,899.99
Ships direct from manufacturer?
The 6 inch Jointer features three auto-set knives that align themselves in the cutterhead for rapid knife changes. Oversized infeed/outfeed tables are mounted on dovetailed ways and have a built-in rabbeting ledge. The fence is 38 inch in length, with positive stops at 90 degree and 45 degree right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a powerful motor with a non-slip v-belt drive for maximum performance. The 4 inch dust port offers easy connection to any dust collection system.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
UPC 66275552311
Features
  • The cutterhead features three high speed steel auto-set knives that automatically align themselves in the cutterhead
  • 66 inch long adjustable infeed and outfeed tables provide more working surface
  • Fine/quick adjustment lever on infeed table for precision cuts
  • Extra-long 38 inch two-way tilting fence with positive stops provides quick positioning for 90 degree or bevel cuts
  • Enlarged sheet metal stand provides a sturdy base
  • Built-in ledge for 1/2 inch rabbeting capacity
  • Fence controls are center-mounted for convenience
  • Push button switch is lockable to prevent accidental starting
PDFs
Horsepower 1 HP
Motor Phase 1 Ph
Warranty

5 Year

Motor Current13/6.5 Amps
Motor Voltage115/230 V
Prewired Voltage115 V
Recommended Circuit Size20/10 Amps
Dust Port Outside Diameter4"
Dust Collection Minimum CFM Required (CFM)600 CFM
Fence Positive Stops45, 90, -45 Deg
Fence Tilt45 Forward, 45 Backward Deg
Fence Size Length38"
Fence Size Height4 3/4"
Rabbeting Ledge9" x 2 1/2"
Rabbeting Capacity1/2"
Outfeed Table Length32 1/2"
Infeed Table Length32 1/2"
Table Height from Floor31 1/2"
Table Size Length66"
Table Size Width7 1/4"
Cutting Capacity Width6"
Cutting Capacity Depth1/2"
Cutterhead Speed (RPM)6,000 RPM
Cutterhead Diameter2 1/2"
Cuts Per Minute18,000 CPM
Number of Knives3 Straight High Speed Steel Knives
Type of CutterheadStraight width Quick Set Knives
