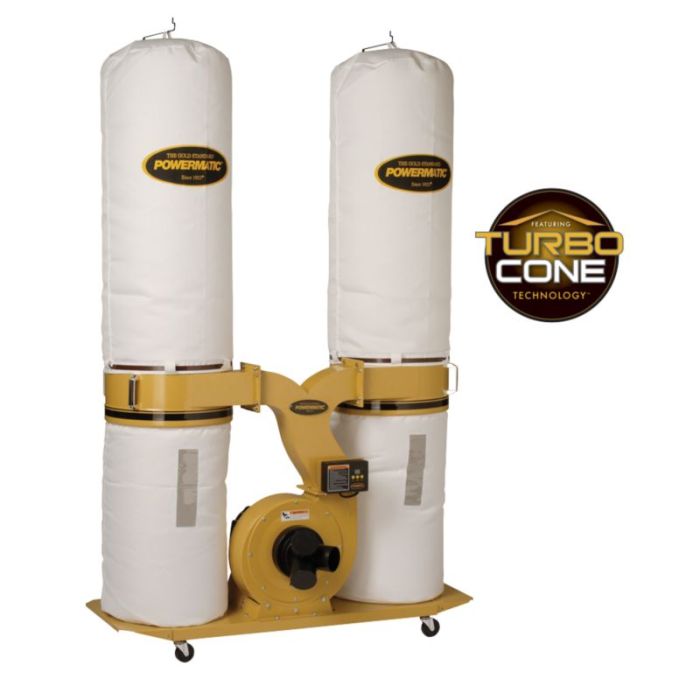

Powermatic 1792071K PM1900TX-BK1 230V Steel Dust Collector 30-Micron Bag Filter Kit, 3HP/1Ph

SKU
1792071K
$1,579.99
In Stock?

FREE SHIPPING! ON ORDERS OVER $99

The PM1300TX Dust Collector features the exclusive TurboCone which improves chip separation to prevent clogging of the filter and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
UPC 731325175240
Features
  • TurboCone™ improves chip separation and collector bag packing efficiency
  • The steel impeller is powered by a 3HP motor for peak performance
  • Remote-controlled digital timer can be programmed for up to 99 minutes
  • The cone eliminates premature filter clogging for sustained performance
  • All-metal duct construction for rigidity and improved air flow
  • Triple 4 inch dust ports allow for several hoses to be attached at the same time
  • Cloth collection bag with view window uses snap ring for rapid installation/removal
  • 10 cubic feet capacity collection bag reduces number of bag changes
  • 30-micron filter bags for improved capture of fine dust particles
PDFs
Horsepower 3 HP
Motor Phase 1 Ph
Stationary type TurboCone
Prewired Voltage230 V
Motor Voltage230 V
Motor Amperage15 Amps
Recommended Circuit Size30 Amps
1-Hose Connection Diameter8"
3-Hoses Connection Diameter4"
Velocity at 8"5393.7 CFM
Velocity at 4"5200 CFM
Impeller MaterialSteel
Impeller Fins7
Impeller Diameter14"
Filter Bag/Canister Length48"
Collection Bag Length30"
Collection Bag Capacity10 Cu. Ft.
Bag Diameter20"
Sound Rating86 - 92 DB
Static Pressure12.15 WC
Efficiency (Micron)30
Number of Air Inlets1(8") or 2(4")
Air Flow at 8"1754 CFM
Air Flow at 4"234 CFM
