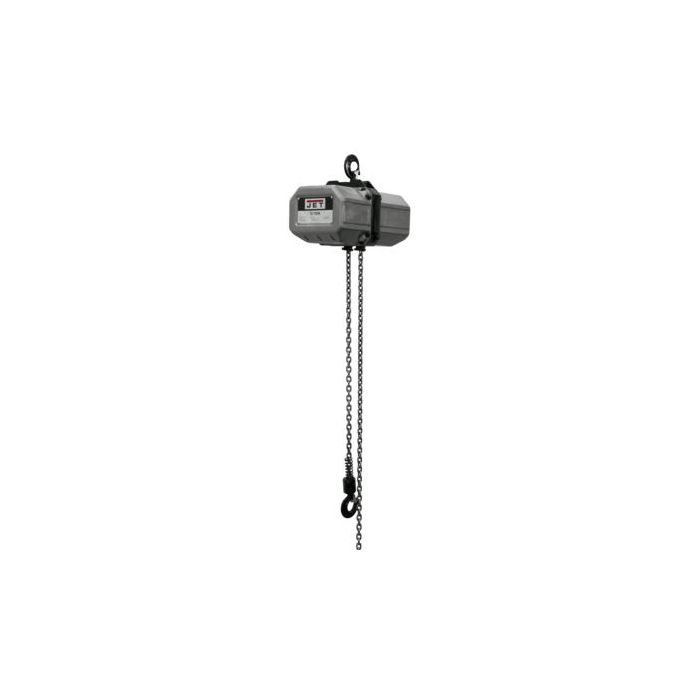

JET 121150 1/2SS-1C-15 1/2 Ton Chain Hoist with 15' Lift, 1PH, 115V/230V
The Jet 1/2SS-1C-15 1/2 Ton Chain Hoist has a totally enclosed steel plate construction for added durability and a powder coat finish. Equipped with a chain container, its reliable DC electro-magnetic brake holds the load even if power is interrupted. The upper and lower limit switches prevent over travel, while the heavy duty ventilated motor has thermal overload protection.
Chain Hoist, Prewired Electric, Jet, 7/8 HP Power Rating, 1/2 Ton Capacity, 20.87 Inch Length, 16.14 Inch Width, 15.35 Inch Height, 20 3/16 Inch Headroom, 6.3 mm Chain, 12 min continuous opeartion in 1 hr, or 1 min on, 4 min off Continuous Run Time, 115/230 V, SPHase Motor, 15 ft Lifting Height Max., 9.8 FPM Lifting Speed, Steel with durable powder coat Material, 1 Falls, 25 % duty cycle, For Commercial and Industrial, Lifting and hoisting heavy loads, 126.5 lb
| Manufacturer | Jet |
|---|---|
| Condition | New |
| UPC | 66275590613 |
| Features |
|
| Hoist Capacity (Tons) | 0.5 Ton |
| Hoist Max Lift Height (Feet) | 15' |
| Horsepower | 0.88 HP |
| Motor Phase | 1 Ph |
| Warranty | 2 Year Warranty |
| Caution | Be sure that the supporting structures and load attaching devices used in conjuntion with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people |
|---|---|
| Duty Cycle Rating | 25 % |
| Headroom | 20 3/16 " |
| Height | 15.35 inch |
| Hoisting Speed | 19.7 fpm |
| Length | 20.87 inch |
| Load Chain (dia.) | 6.3 mm |
| Model Number | 1/2SS-1C-15 |
| Motor Voltage | 115 / 230 V |
| Net Weight | 121.2 pound |
| Number of Falls | 1 |
| Part Number | 121150 |
| Web Description | 1/2SS-1C-15, 1/2 TON 1PH, 15' LIFT, 115V/230V PREWIRED 230V |
| Width | 16.14 inch |
