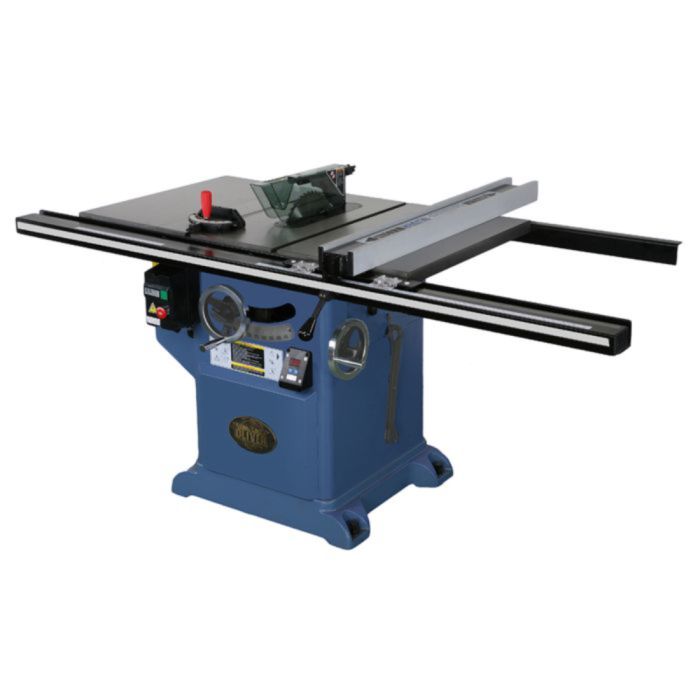

Oliver Machinery 4016.004, 10" 5HP 3Ph Heavy Duty Table Saw w/36" Rail

SKU

4016.004

$3,399.99

Ships direct from manufacturer

Large precision ground table provides a stable work surface.

Cast iron base offers a steady platform.

Fully enclosed cabinet and blade dust shroud for better dust management.

Precision ground 5/8” arbor.

Wide stance trunnion features a left tilt blade.

Poly V-belt drive smoothly transfers power to the blade.

Hydraulic assisted blade lift mechanism for easy movement.

Large chrome hand wheels allow easy adjustments.

Includes digital readout of blade tilt.

Riving knife splitter for added safety against kick-back.

Optimus T-square fence available in 36” rip capacity.

36” rail includes (2) cast iron extension wings.

Optional rear support table available.

Magnetic controls with emergency off switch.

Powerful TEFC motor available in three phase.

Blade not included.

WARNING: Proposition 65 Warning for California Residents View Details

Type	Table Saw
Rail Length	w/36' Rail
Blade Diameter	10" - 40 Tooth Blade Included
Arbor Diameter	5/8"
Blade Tilt	Left
Maximum Depth of Cut at 90 Deg	3"
Maximum Depth of Cut at 45 Deg	2-1/4"
Maximum Width of Dado	13/16"
Maximum Cut to Right of Blade	36"
Maximum Cut to Left of Blade	12"
Dust Port Diameter	4"
Table Dimension w/o Extensions (D x W)	27" x 21-1/4"
Wing Size	27" x 12"
Table Height	36"
Motor 1 Ph	5HP, 3Ph, 220V/440V Prewired 220V (12/6 Amp)
Overall Dimension (L x W x H)	72" x 32-1/2" x 40"
Weight	480 lbs
