Edwards ED9-HAT1020, 10 Ton Pipe Bender and 3Ph Portable Power Unit
SKU
ED9-HAT1020
Special Price $8,396.10 Regular Price $9,329.00
Ships direct from manufacturer?

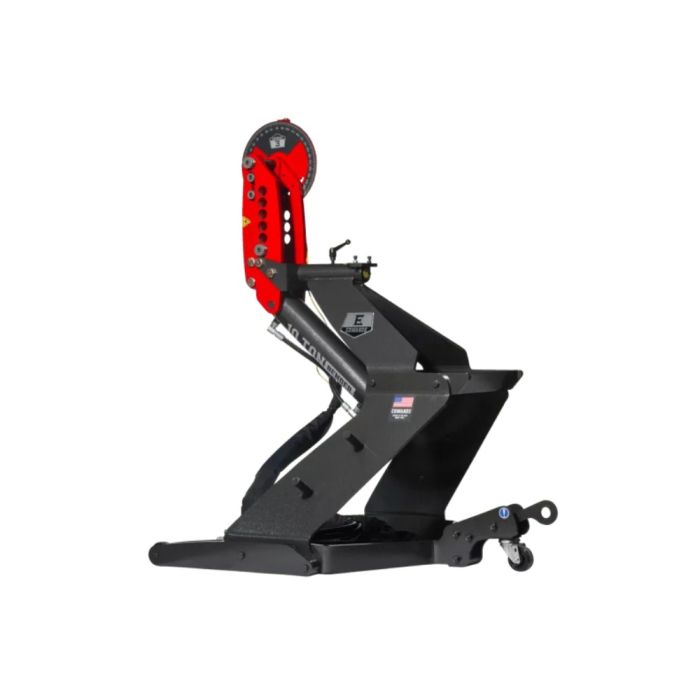

The Edwards Hydraulic Porta Power and 10 Ton Bender provide great flexibility to your shop. With over 300 dies available to bend pipe, tube, or square tube up to 180°, this Bender is a must have for any fabrication shop. Able to operate either Horizontally or Vertically depending on your project and with a heavy-duty rolling base, you can move the Bender out of the way when your project is complete. This 10 Ton Porta Power and Bender kit includes a Portable Power Unit and is ready to PLUG IN & POWER UP.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Edwards Ironworkers |
|---|---|
| Condition | New |
| UPC | 00731325581218 |
| Features |
|
| Warranty | 1 Year |
| Type | Pipe Bender |
|---|---|
| Bend Capacity | 180 Deg |
| Cylinder | 1-3/4" Ram |
| Hydraulics (GPM) | 3-1/2 GPM |
| Maximum Bend | 180 Deg |
| Model Number | HAT1020 |
| Net Weight | 980 lbs |
| Overall Dimensions (L x W x H) | 66" x 93" x 100" |
| Pipe Capacity | 2" (ID) Sch 40 |
| Product Dimensions | 40-1/2" x 36-1/2" x 42" |
| Rating (Tons) | 10 Ton |
| Round Pipe Sch. 40 Capacity | 2" |
| Round Tube Capacity | 2-1/2" |
| Square Tube Capacity (In.) | 2 (OD) .25 |
| Stroke | 14" |
| Tube Capacity (In.) | 2-1/2 (OD) .095 |
| Valve Pressure (PSI) | 2750 PSI |
| Weight | 1000 lbs |
