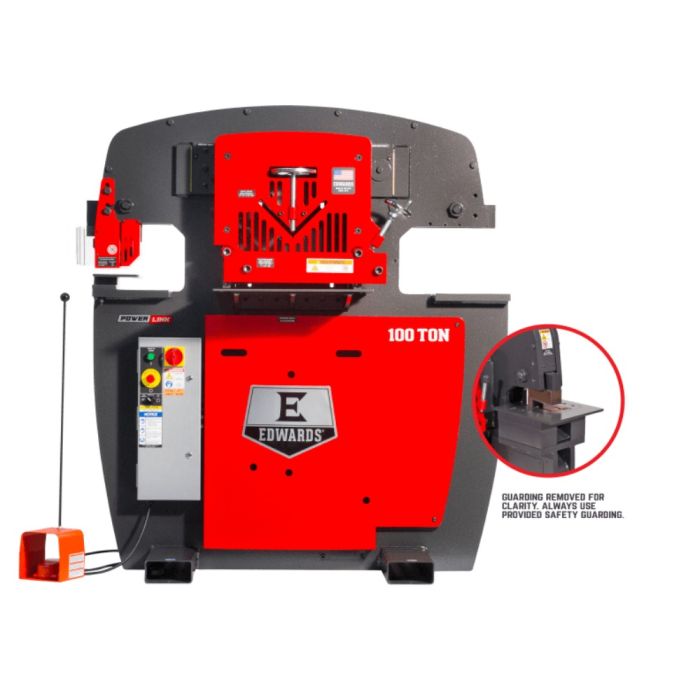

Edwards ED9-10231512 100 Ton 3Ph 208V PowerLink Hydraulic Ironworker

SKU
ED9-10231512
Special Price $34,829.10 Regular Price $38,699.00
Ships direct from manufacturer?

This 100 Ton Ironworker provides optimal power and adaptability to handle any project with its 4 Workstations including a factory-installed Coper Notcher. Compatible with 12 interchangeable Attachments and 17 Accessories to adapt the Ironworker to our needs. Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. Includes a 10" Brake with 4-Way Die allowing 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle. Ideal for larger fabrication shops or those jobs requiring heavier materials.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerEdwards Ironworkers
ConditionNew
UPC00731325864182
Features
    • Adjustable electric stoke control
    • ANSI B11.5-1988(02) Compliant Guarding
    • Bright LED lights increases visibility
    • Durable, heavy-duty Made in USA steel construction
    • ETL Certified Controls
    • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
    • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
    • Optimized workstation heights for improved efficiency
Horsepower7.5 HP
Motor Phase3 Ph
Speed (RPM)1,765 RPM
Warranty1 Year
TypeHydraulic Ironworker
Flat Bar Shear Max Capacity 1"14
Flat Bar Shear Max Round1-1/4"
Flat Bar Shear Max Square1-1/4"
Flat Bar Shear Work Height37"
Model Number10231512
Motor Amps22 A
weight4735 lbs
Punch Max Capacity (In.)1-1/16" Diameter in 1" A36
Punch Open Height8-3/4"
Punch Shut Height6-15/16"
Punch Stroke1-13/16"
Punch Throat Depth11"
Punch Work Height39-1/16"
Rating (Tons)100 Ton
Reservoir (Gal.)17 Gal
Valve Pressure (PSI)3500 PSI
Weight4650 lbs
Motor Voltage208V
