Special Price $34,199.10 Regular Price $37,999.00
Ships direct from manufacturer?

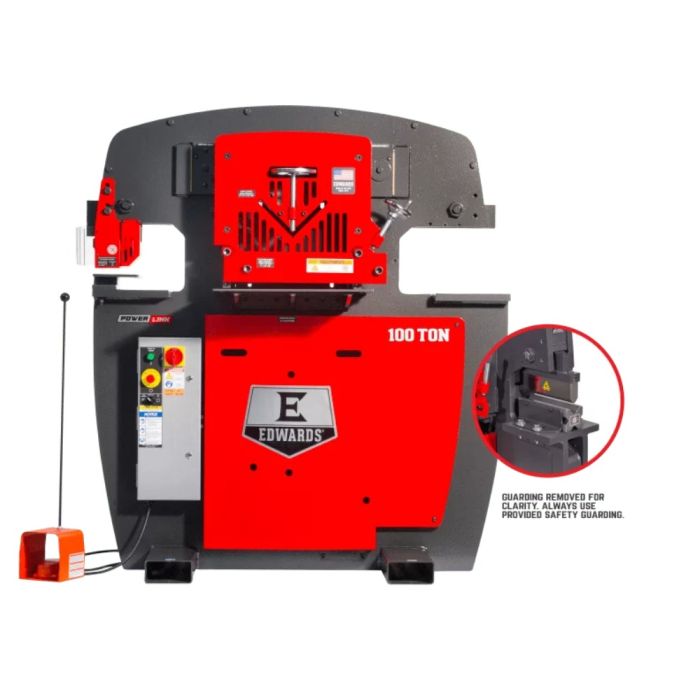

This 100 Ton Ironworker provides optimal power and adaptability to handle any project with its 4 Workstations including a factory-installed 10" brake. Compatible with 12 interchangeable Attachments and 17 Accessories to adapt the Ironworker to our needs. Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. Includes a 10" Brake with 4-Way Die allowing 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle. Ideal for larger fabrication shops or those jobs requiring heavier materials.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Edwards Ironworkers |
|---|---|
| Condition | New |
| UPC | 00731325864199 |
| Features |
|
| Horsepower | 7.5 HP |
| Motor Phase | 3 Ph |
| Speed (RPM) | 1,765 RPM |
| Warranty | 1 Year |
| Type | Hydraulic Ironworker |
|---|---|
| Flat Bar Shear Max Capacity 1" | 14 |
| Flat Bar Shear Max Round | 1-1/4" |
| Flat Bar Shear Max Square | 1-1/4" |
| Flat Bar Shear Work Height | 37" |
| Hydraulic Pump (GPM) | 10-1/2 GPM |
| Model Number | 10231522 |
| Motor Amps | 22 A |
| weight | 4704 lbs |
| Punch Max Capacity (In.) | 1-1/16" Diameter in 1" A36 |
| Punch Open Height | 8-3/4" |
| Punch Shut Height | 6-15/16" |
| Punch Stroke | 1-13/16" |
| Punch Throat Depth | 11" |
| Punch Work Height | 39-1/16" |
| Rating (Tons) | 100 Ton |
| Reservoir (Gal.) | 17 Gal |
| Valve Pressure (PSI) | 3500 PSI |
| Weight | 4650 lbs |
| Motor Voltage | 208V |
