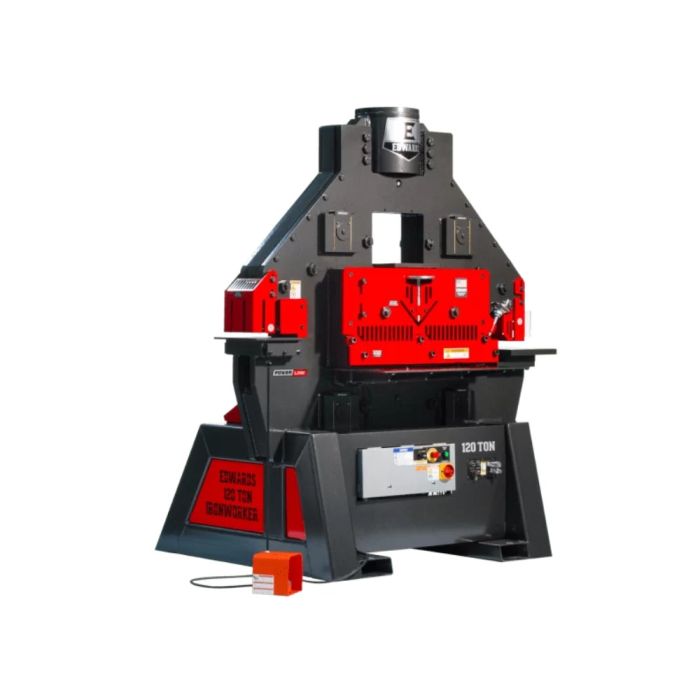

Edwards ED9-IW120-3P230-A 120 Ton 3Ph 230V Hydraulic Ironworker with PowerLink
SKU
ED9-IW120-3P230-A
Special Price $42,749.10 Regular Price $47,499.00
Ships direct from manufacturer?
Our most powerful Ironworker, the 120 Ton, offers the largest capacity and most flexibility - created with heavy-duty Made in USA steel construction. This compact machine allows for fast and easy transitions between fabrication operations. The 5 Workstations include a punch, flat bar shear, angle shear, coper notcher, and Open Cavity that accepts 4 Attachments. Further customize the Ironworker to our projects with 12 additional Attachments and 15 Accessories. Other features include an electric foot pedal with integrated jog control and bright LED lights to increase visibility. The longer stroke length and increased capacity provided by this Ironworker allow it to handle the most heavy-duty projects.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Edwards Ironworkers |
|---|---|
| Condition | New |
| UPC | 00731325555943 |
| Features |
|
| Horsepower | 10 HP |
| Motor Phase | 3 Ph |
| Speed (RPM) | 1,770 RPM |
| Warranty | 1 Year |
| Type | Hydraulic Ironworker |
|---|---|
| Amps | 26 A |
| Angle Shear Max Capacity 1/2" | 6 x 6 |
| Angle Shear Work Height | 52-1/2" |
| Coper Notcher Max Capacity | 3" x 6" x 1/2" |
| Coper Notcher Work Height | 40" |
| Flat Bar Shear Max Capacity 1" | 12 |
| Flat Bar Shear Max Capacity 1/2" | 24 |
| Flat Bar Shear Max Round | 1-1/4" |
| Flat Bar Shear Max Round Capacity | 1-1/4" |
| Flat Bar Shear Max Square | 1-1/4" |
| Flat Bar Shear Rating (Tons) | 120 Ton |
| Flat Bar Shear Work Height | 33-1/4" |
| Hydraulic Pump (GPM) | 24 GPM |
| Hydraulic Reservoir (Gallon) | 17 Gal |
| Hydraulics (GPM) | 24 GPM |
| Hydraulics (PSI) | 3800 PSI |
| Model Number | IW120-3P230-AC900 |
| Motor Amps | 26 A |
| weight | 5856 lbs |
| Overall Dimensions (L x W x H) | 60" x 60" x 84" |
| Product Dimensions | 60" x 60" x 84" |
| Punch Max Capacity (In.) | 1-1/2" Diameter in 1" mild steel |
| Punch Open Height | 9-1/8" |
| Punch Rating (Tons) | 120 Ton |
| Punch Shut Height | 7-1/8" |
| Punch Stroke | 2" |
| Punch Work Height | 36-5/8" |
| Rating (Tons) | 120 Ton |
| Reservoir (Gal.) | 17 Gal |
| Shipping Dimensions (L x W x H) | 60" x 67" x 87" |
| Valve Pressure (PSI) | 3800 PSI |
| Weight | 5500 lbs |
| Motor Voltage | 230V |
