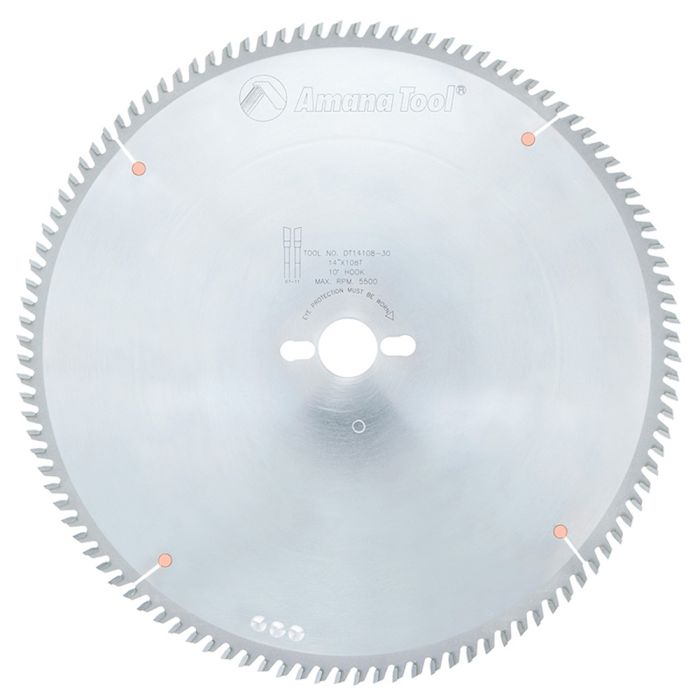

Amana Tool DT14108-30 14" 108T ATB Carbide Tipped Sliding Table Saw Blade with Pinholes at 2/7/42, 2/9/46 & 2/10/60

SKU
DT14108-30
$288.27
Ships direct from manufacturer ?
This high-performance crosscutting blade is designed primarily for use in sliding table saws, such as Striebig, Altendorf, SCMI and Delta models. They are also suitable for use in regular table saws. The blades incorporate an exceptional array of features: high tooth count, expansion slots and turbulence-dampening copper plugs. The Ditec carbide tips add exceptional sharpness and long tool life to these features. ATB grind is for solid wood and plywood.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868513108
Features
  • Exclusive Ditec carbide tips
  • Higher reliability and lower maintenance
  • Low noise level
  • Laser cut saw bodies
  • Excellent cutting quality
  • For maintenance grinding, use fine grit (D400 to D600) diamond wheels
  • To match the factory grind, use a slower than normal feed rate
  • Damaged teeth can be replaced by any grade of carbide tooth
  • Replacing of a large number of teeth will, of course, shorten the life of the saw blade
  • Since the carbide in the Ditec is harder than other carbides, it is critical that you protect them from “thermal shock” if an adjacent tooth is replaced
  • Heat absorbed during the brazing process will seriously degrade the Ditec carbide
ApplicationSoft/Hardwood Crosscut, Cabinet Plywood Rip/Crosscut
Bore30 mm
Diameter(D) inch14"
Diameter(D) mm350 mm
GrindAlternate Top Bevel (ATB)
Hook(a°)10 Deg
Kerf(B) Inch0.137"
Kerf(B) mm3.5 mm
MaterialCarbide Tip
Pinholes2/10/60
Plate(C) Inch0.098"
Plate(C) mm2.5 mm
Teeth108
Tool No.DT14108-30
Blade Diameter14"
Teeth per Inch108
Arbor Size30 mm
Tooth grindAlternate Top Bevel (ATB)
Hook Angle10 Deg
Blade thickness (Kerf)0.137"
Plate0.098"
Blade TypeSliding Table Saw
Max. RPM5,500 RPM
Pinholes2/7/42, 2/9/46 & 2/10/60
