Lamello 145026 E20-H Self-Clamping Element Connector

SKU
145026
$145.00
Ships direct from manufacturer?

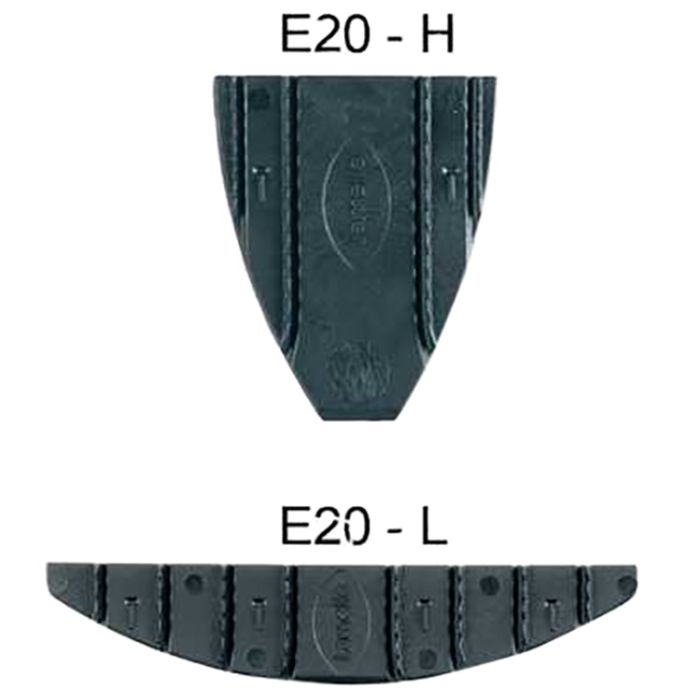

E20 is a self-clamping element and can be used with any Lamello biscuit joiner. The E20 is driven into the 4 mm groove using a hammer. During insertion, the curved ridges on each side of the connector hold in the groove and clamp the workpieces together. E20 serves as a perfect glueing aid in the workshop or on site. E20-L is suitable for surface joints such as picture frames, plinth or panel extensions. E20-H is used in the edge and serves as a plinth connector.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Lamello
Condition New
Features
  • Connects and clamps with one strike
  • Cut grooves on both pieces simultaneously
  • No Clamps, no waiting time
  • Versatile: A cutting principle for many different joining elements
  • Connects and Clamps with a Single Strike: The angled barbs ensure that the connection is clamped together during plunging
  • One Cut for Both Workpieces: The connector groove is cut with a biscuit joiner in both workpieces simultaneously
Size23 mm x 29 mm x 4 mm
Cutter Diameter100 mm x 4 mm x 22 mm
MaterialFiberglass Reinforced Plastic
TypeConnector
Package Size400
