Lamello 145241 S-18 Clamex Connector

SKU
145241
$980.00
Ships direct from manufacturer?

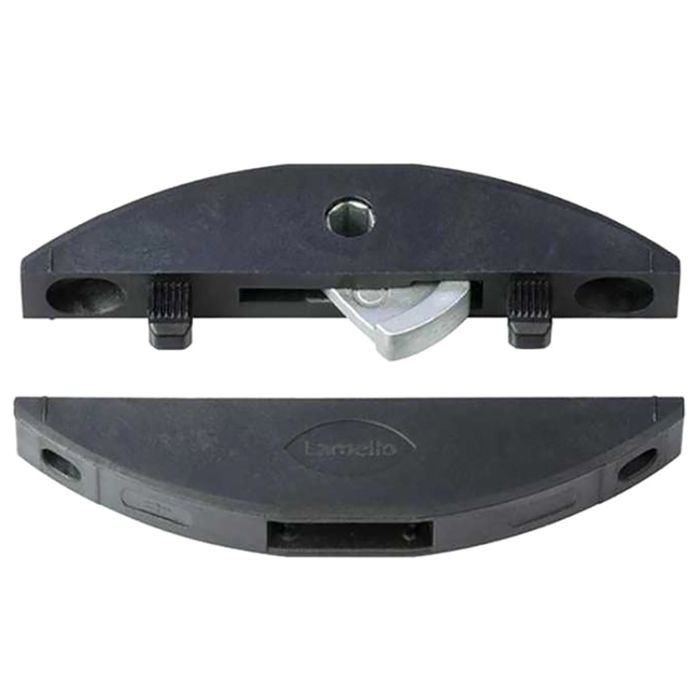

Clamex S-18 is a detachable connector. It is inserted into an 8 mm wide groove and held in place with screws. Through the minimalist 6 mm access hole, Clamex S-18 is firmly connected and disconnected using a lever. Clamex S-18 can be used with any Lamello biscuit joiner, allows aesthetic joints at all angles and is ideal for permanently joined or detachable mitres. Clamex S-18 is used in mitre joints from 19 mm material thickness and in butt joints from 15 mm.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerLamello
ConditionNew
UPC07640149930757
Features
  • Detachable connector for miters from 30-180 degree and for butt-joints
  • Small opening 6 mm
  • Installation with any Lamello biscuit joiner
  • A Detachable All-Rounder: Workpieces connected with the Clamex P can be detached at any time using the rotating lever
  • Very Aesthetic: Only a small, barely visible tool opening of 6mm is used to open and close the connector
  • Versatile: A cutting principle for many different joining elements
Package Size300
Size66 mm x 29 mm x 8 mm
Cutter Diameter100 mm x 8 mm x 22 mm
Material LeverZinc Die Cast
Installation ToleranceLongitudinal ± 1 mm
Material of ConnectorFiberglass Reinforced Plastic
TypeConnector
Tensile Strength (N) Particle Board~ 800 N ≈ 80 kg
Tensile Strength (N) Beech~ 1300 N ≈ 130 kg
