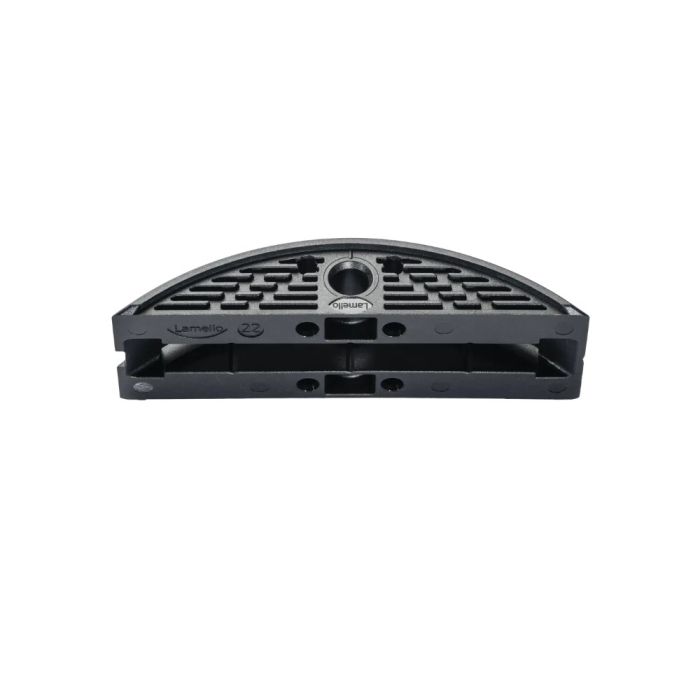

Lamello 145731 LC P-16 x 22 P-System Connector, 1000/Box

LC P-16 is a P-System connector for lightweight panels that combines the advantages of lightweight construction with the efficient and aesthetic Clamex connector. Due to its width, the LC P-16 is anchored in the surface layers and acts as an adapter into which a Clamex P-14 connector with lever is slid in. The LC P-16 thus enables extremely strong, detachable connections in lightweight construction without the time-consuming use of concealing timber edges or adhesives.

The LC P-16 lightweight connector significantly improves the machining and assembly process. The time-consuming use of a concealed timber edge is eliminated, which speeds up the production process and also saves material. The simple assembly - the connector is simply slid in - completely eliminates waiting times due to glueing. The result is a fast, smooth process that reduces time and costs in both manufacturing and assembly, without compromising on aesthetics, stability and quality.

With the three available sizes LC P-16x11, LC P-16x17 and LC P-16x22, joints in the most common lightweight panels are possible. Machining with two to three operations is carried out either with the Zeta P2 or, even more efficiently, with the CNC machining centre. For machining with the Zeta P2, the P-system depth adjuster is set to 18 mm and the 2 mm depth adjuster cap is then attached to achieve a machining depth of 16 mm. To ensure that the next machinings are positioned precisely one above the other, the access hole is drilled after the first machining with the Clamex P drill jig with the P-16 interchangeable element insert. The positioning clip on the Zeta P2 engages in the hole and ensures that the machinings are positioned exactly on top of each other. The height is adjusted via the angle stop. The recurring height adjustments of the angle stop can be adjusted efficiently using self-made spacers, for example made of leftover wood.
