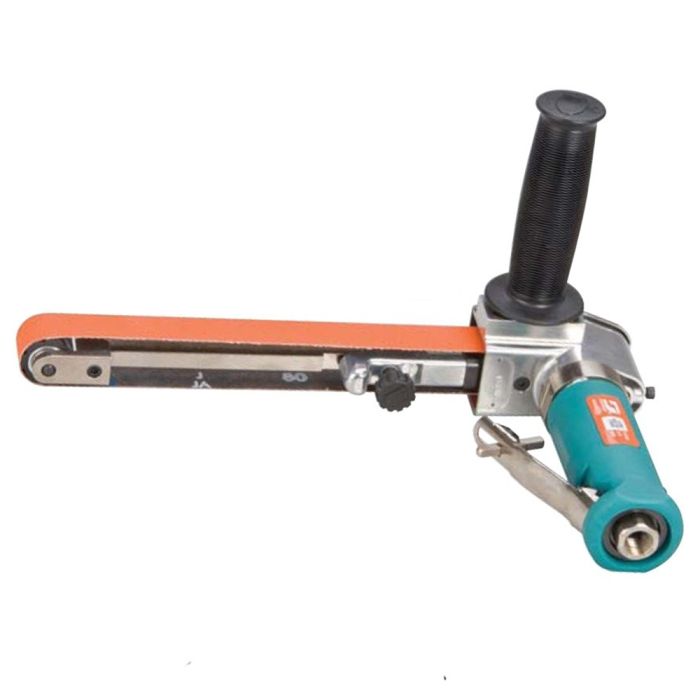

Dynabrade 15360 Dynafile III 1/4" Right Angle Front Exhaust Abrasive Belt Machine

SKU
15360
$871.25
Ships direct from manufacturer?
Dynafile III abrasive belt tool offers all the versatility of our world-famous Dynafile II, while serving up more power (Straight-Line, 0.7 Hp/522 Watt) for faster material removal. High-efficiency rubber drive wheel, ideal for use with all abrasive belts. Tool grinding head pivots 360 degree. Soft grip handle assembly allows operator to apply additional force to contact wheel. Handle also offers enhanced control and maneuverability. Optional safety-lock throttle lever is available.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerDynabrade
ConditionNew
UPC00616026153608
Includes
  • Rubber Drive Wheel
  • 15368 Contact Arm for 1/4" - 1" (6-25 mm) W x 24" (610 mm) L Abrasive Belts
PDFs

Catalog

ApplicationFor Grinding Welds, Blending and Deburring
Belt Size1/4" - 1" W x 24" L
Horsepower0.7 HP
Pressure Rating (PSI)90 PSI
Speed (RPM)23,000 RPM
WarrantyLimited Lifetime
Type Abrasive Belt Machine
Sound Level 91 dB(A)
Maximum Air Flow Rate 34 SCFM
Maximum SFPM 4,550 SFPM
Air Inlet Thread Size 1/4"
Air Inlet Thread Type NPT
Hose Inner Diameter 3/8"
Exhaust Type Front
Vacuum Type Non-Vacuum
Motor Type Rotary Vane
Tool Style Right Angle
CE Certified Yes
EAC Certified Yes
Length 12 3/4"
Width 6.5"
Height 7 1/8"
Weight 3.35 lbs
