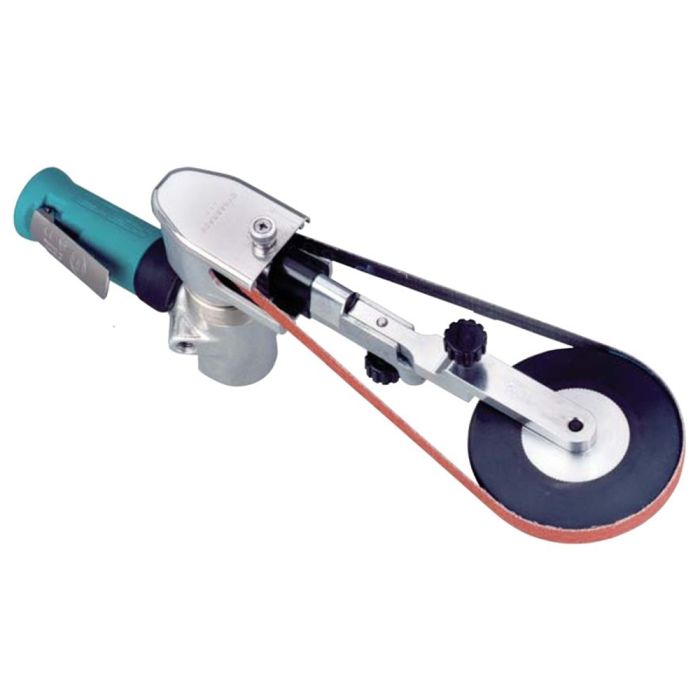

Dynabrade 15420 Dynafile III 1/2"W X 24"L 7 Degree Offset Front Exhaust Abrasive Belt Tool

SKU
15420
$1,012.00
Ships direct from manufacturer ?
The sound level is measured according to ISO regulation ISO-15744. The Dynafile III abrasive belt tool is more powerful (.7 hp / 522 W) than the Dynafile II for faster material removal. The tool has a contact arm with a unique 4" diameter wheel, suitable for grinding or blending right angle and fillet welds. It can grind corner welds without undercutting and accepts belts 24" long in widths of 1/4" or 1/2". The tool's grinding head can pivot 180 degrees and the contact arm includes a hand guide for added control.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerDynabrade
ConditionNew
UPC00616026154209
Includes
  • 11702 Contact Arm with Unique 4" Diameter Wheel
PDFs

Catalog

Belt Size1/4" or 1/2" W x 24" L
Horsepower0.7 HP
Speed (RPM)20,000 RPM
WarrantyLimited Lifetime
TypeAbrasive Belt Tool
Maximum Air Flow Rate37 SCFM
Sound Level84 dB(A)
Maximum SFPM4,550 SFPM
Air Inlet Thread Size1/4"
Air Inlet Thread TypeNPT
Exhaust TypeFront
Hose Inner Diameter3/8"
Vacuum TypeNon-Vacuum
Tool Style7 Degree Offset
Motor TypeRotary Vane
EAC CertifiedYes
CE CertifiedYes
Tool Style7 Degree Offset
Length16"
Height5.8"
Width7"
Weight2.84 lbs
