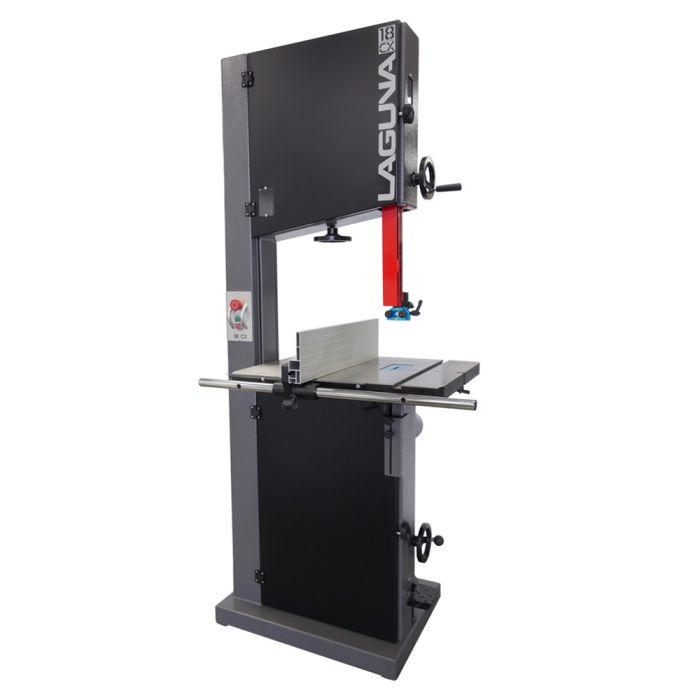

Laguna MBAND18CX110175 18|CX Bandsaw for Metal/Wood

SKU

MBAND18CX110175

$4,899.00

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

The 18|CX bandsaw follows in the traditions of high-performance and reliability to be expected from a Laguna Tools Bandsaw. The 18|CX is built with a 1.75HP, 110V motor and features variable speed control to cut through metals and wood with ease.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Laguna
Condition	New
Features	Foot operated 360 degree omni-directional Rubber-coated wheels Adjustable rubber pads Oilite bronze bushing allows for less friction and longer life Easy install with no drilling required Pedal raises and lowers front wheel Wheels mounted outside frame to maximize stability Disc-brake with micro switch 110V outlet on back for light Window for tension Window for tracking Magnetic blade tension guide Worm gear and pinion upper guide 10 point laguna ceramic guides Mechanical variable speed drive Anodized insert with micro adjustment Dynamically balanced cast iron wheels Urethane single piece snap-on tire Quick-Release Tension
Video
Horsepower	1.75 HP

Magnetic Starter	Yes
Voltage	100 V
Amperage	14/7 Amp
Recommended Breaker	20 Amp
Resaw Capacity	16"
Throat	18 7/32"
Blade Length	145"
Low Blade Speed	100 - 290 FPM
High Blade Speed	1,200 - 3,500FPM
Cast Table Size	20" x 26"
Table Tilt	6 Deg+45 Deg
Hi/Low Anodized Aluminum Fence Dimensions	22 3⁄4" x 7 1⁄4" x 11⁄16"
Table Height	38"
Dust Ports	2 x 4"
Minimum Blade Width	1/8"
Maximum Blade Width	1 1/4"
Overall Height	77 3/4"
Overall Dimensions	38"x 36"
Overall Dimensions Base	27" x 20"
Weight	480 lbs
Type	Bandsaw
