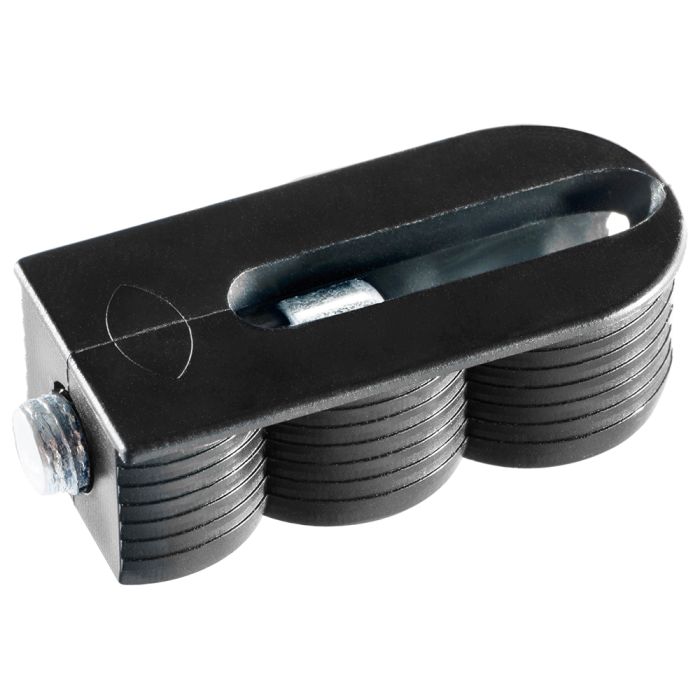

The Cabineo is a one-piece cabinet unit fitting and is installed into a drilled or routed shape. No edge drilling is necessary - the machining happens solely in the surface. Due to this, Cabineo can be used with all kinds of CNC machines, including very simple 3 axis and nesting machines. In comparison with the standard cam and dowel fitting, the Cabineo offers more efficient production, faster installation and a higher clamping force. To top it off, there is no need for wooden dowels. The concept of the fitting was designed to use a minimal amount of resources for a maximum of functionality. The Cabineo offers considerate advantages in the whole process, including production, transport and installation. Installing the fitting into the workpieces and stacking them during the production process is possible without any protruding parts, which could damage the finished surfaces. This eliminates the packing of bags with fittings which would need to be delivered to the job site for installation. Because the elements are already factory-installed, the person assembling doesn't need to handle loose fittings supplied in a bag during installation. This speeds up the assembly considerably and additionaly helps in reducing possible mistakes. The fitting is inserted into the routed shape on the surface. This can take place in production prior to transport or following transport at the final destination. The preinstalled screw inside the fitting is then screwed into the 5mm drill hole in the corresponding workpiece, using a ball-end allen key. The speed of the cordless drill joins the workpieces quickly and powerfully. Cover caps in various colours are also available and can be clipped onto the Cabineo within seconds. The time-saving one-piece Cabineo furniture connector, is now also available with black housing. When used in dark materials, the Cabineo black fuses with the background, so that no additional cover caps are necessary. Areas of application are kitchens with black or anthracite-coloured interior cabinets, dark walk-in-wardrobes in private and public areas or restaurant furnishings. The Cabineo black is also ideal for shop fitting where dark materials are often used, whether in the clothing market or in the food sector e.g. wine exhibitions or vegetable displays.
