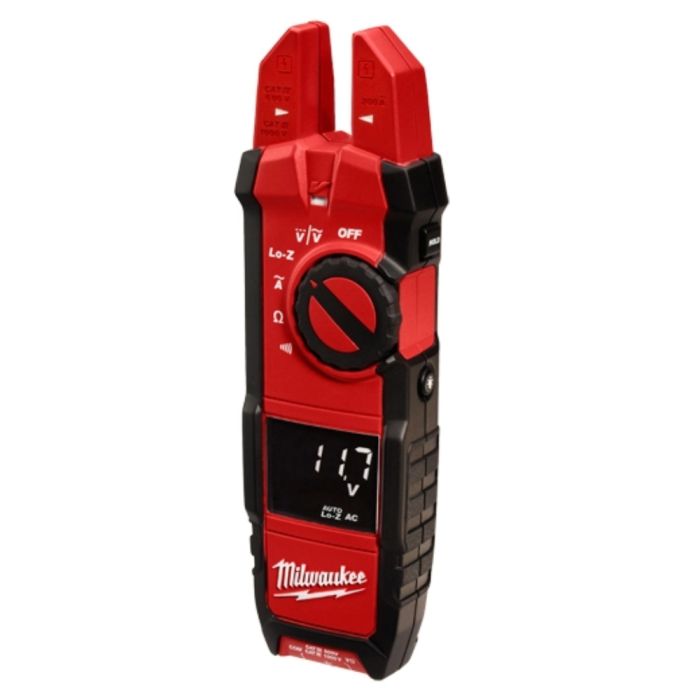

Milwaukee 2205-20 Fork Meter

SKU
2205-20
$169.00
Ships direct from manufacturer ?

The Milwaukee Fork Meter is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2205-20 is four tools in one providing current measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63” fork opening, high 200amp current range and a high contrast white-on-black display. Covered by Milwaukee 5-Year Warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMilwaukee Electric Tool
ConditionNew
UPC04524217373
Features
  • Built-In Voltage Detector and LED Work Light
  • CAT IV 600V / CAT III 1000V for greater safety
  • High Contrast, White on Black Display with Backlight for easy reading
  • Lo-Z measurement to eliminate ghost voltage
  • Measures up to 200 amps, Wide 0.63” jaw opening
  • Rugged over-molding increases durability and user grip
  • True-RMS for accurate measurement in all applications
  • Wide Voltage range to 1000 volts AC /DC
Includes
  • (1) Test Lead Set
  • (2) AA Batteries
  • (1) Manual
Battery TypeAlkaline
MaterialPlastic
Warranty5 Years
TypeFork Meter
Display TypeLCD
Switch TypeDial Switch
TrmsYes
Safety RatingCAT IV 600V / CAT III 1000V
Current AC200A
Voltage AC DC1000V
Resistance40MΩ
ContinuityAudible
Display BacklightYes
Non Contact VoltageYes
LED Work LightYes
Rugged Over MoldingYes
Fork Opening0.63"
Lo Z MeasurementYes
Length5.5"
Height2.15"
Width10.5"
Weight1.3 lbs
