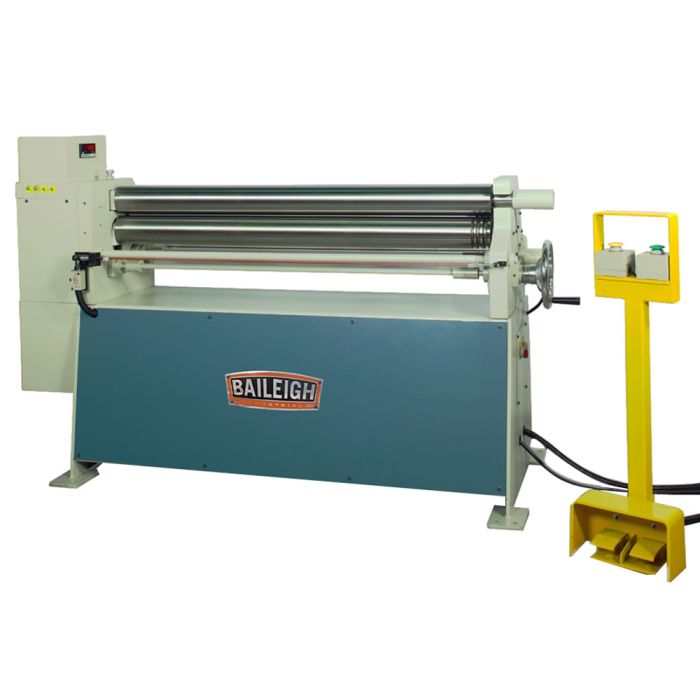

Baileigh Industrial 1006521 PR-413 Plate Roll Ships direct from manufacturer
Built with a 2 hp motor, hydraulically controlled back roll, and a steel frame, this electrical plate roller lets you tackle thicker gauges without getting bogged down. It comes with a DRO.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New Features
Convenient control pedestal has forward and reverse foot pedals and buttons to control the up and down movement of the back roll
Industrial-grade hydraulic system allows the back roll to move up and down and tilt left and right for coning
Digital readout gives the position of the back roll for easy repeatability
Full steel frame, machined to exacting tolerances, maintains accuracy for many years of use at full capacity
Includes 3 wire grooves for forming rings
Emergency stop cable on the front and back of the machine for safety
Covered by a 1-year parts warranty
Motor Phase 1 Ph Stationary type Plate Roll
Forming Width 48" Roll Speed 6 RPM Upper Roll Diameter 3.50" Roll Adjustment Back Hydraulic Minimum Forming Dia 5.25" Motor 2 Hp Voltage 220 V Wire Grooves Yes Capacity (Mild Steel) 13 Gauge (0.090")
