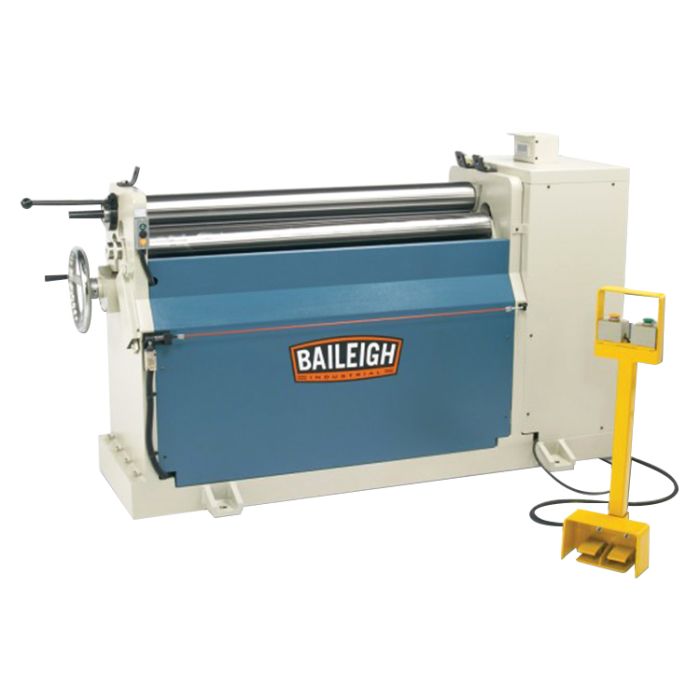

Baileigh Industrial 1006517 4.75" PR-409 Plate Roll
Ships direct from manufacturer
With 3 driven rolls, this single-pinch hydraulic plate roll cuts down on forming time so you can get jobs done faster.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Baileigh Industrial |
|---|
| Condition | New |
|---|
| Features |
- Can bend 9 gauge mild steel into a 7" ring on its full length
- Operated entirely by an industrial-grade hydraulic system
- 2 hp 220-volt 3-phase motor controls movement of the back roll and the rolling of all 3 forming rolls
- Convenient control pedestal includes forward and reverse foot pedal and buttons to control the up and down movement of the back roll
- Digital readout shows the position of the back roll for easy repeatability
- Full steel frame, machined to exacting tolerances, maintains accuracy and prevents deflection
- Emergency stop cable on the front and back of the machine help to keep your shop safe
- Covered by a 1-year parts warranty
|
|---|
| Horsepower | 2 HP |
|---|
| Motor Phase | 3 Ph |
|---|
| Stationary type | Plate Roll |
|---|
| Forming Width | 48" |
|---|
| Roll Speed | 5.85 RPM |
|---|
| Upper Roll Diameter | 4.75" |
|---|
| Roll Adjustment Back | Hydraulic |
|---|
| Minimum Forming Diameter | 7 1/8" |
|---|
| Voltage | 220V |
|---|
| Capacity (Mild Steel) | 9 Gauge. (.150") |
|---|
