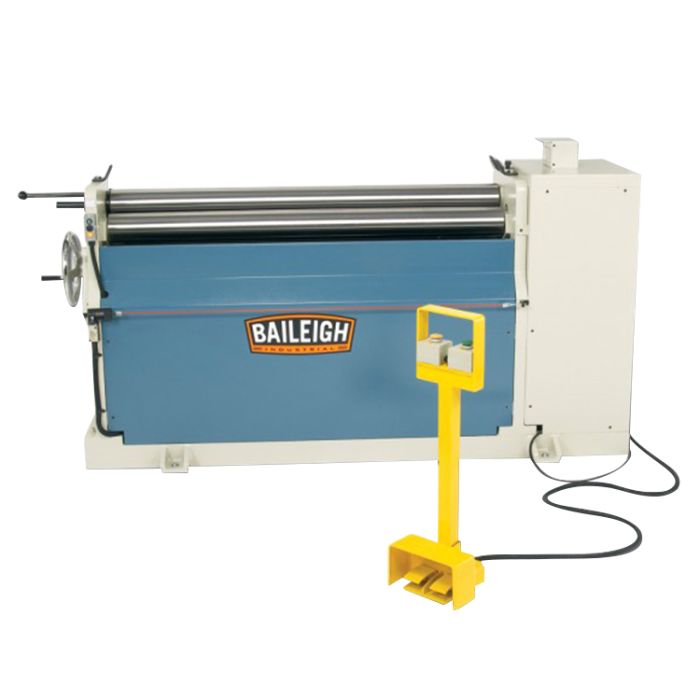

Baileigh Industrial 1006533 60" PR-510 Plate Roll
Ships direct from manufacturer
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Baileigh Industrial |
|---|
| Condition | New |
|---|
| Features |
- Single pinch roll former has 3 driven rolls to increase the efficiency of the machine
- 4-¾" OD rolls are hardened, then polished to ensure no marring to the material
- Hydraulically controlled back roll can move up and down and tilt left and right for coning
- Digital readout displays the back roll position for repeatable bends
- Fully welded plate steel frame eliminates any deflection of the rolls even at maximum thickness capacity
- Covered by a 1-year parts warranty
|
|---|
| Horsepower | 2 HP |
|---|
| Motor Phase | 3 Ph |
|---|
| Stationary type | Plate Roll |
|---|
| Forming Width | 60" |
|---|
| Roll Speed | 5.85 RPM |
|---|
| Upper Roll Diameter | 4.75" |
|---|
| Roll Adjustment Back | Hydraulic |
|---|
| Minimum Forming Diameter | 7 1/8" |
|---|
| Voltage | 220V |
|---|
| Capacity (Mild Steel) | 10 Gauge. (0.135") |
|---|
