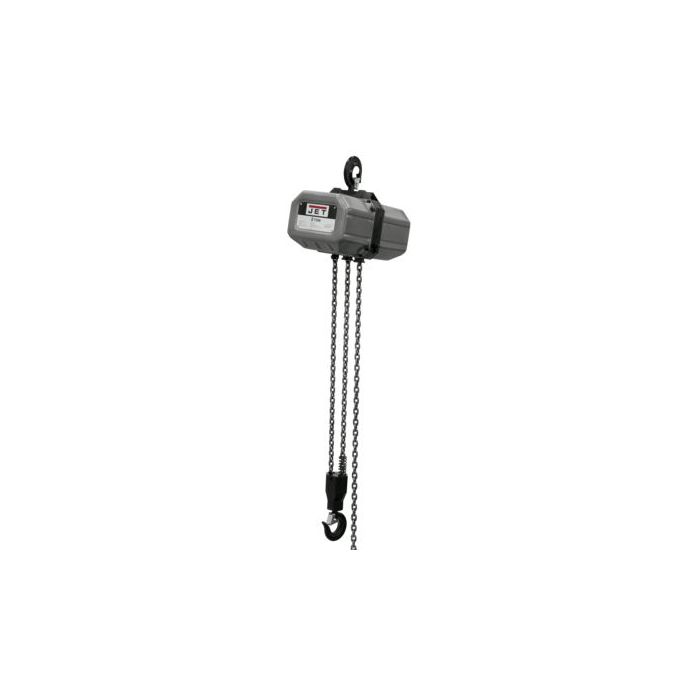

JET 232000 2SS-3C-20, 2 Ton Chain Hoist with 20' Lift, 3PH, 230V/460V

For decades JET has been providing the industrial market with high quality electric hoists. As times
change, our commitment to providing world class quality has not. The SSC series electric hoists have
been designed for commercial and industrial applications. They feature totally enclosed steel plate
construction with a durable powder coat finish and a heavy duty ventilated motor with thermal overload
protection for the toughest work environments. To protect our customers, all of the SSC hoists come
standard with slip clutch style overload protection to prevent damage to the hoist or injury to the user
as well as a durable low voltage (24V) push button control with built in strain relief.
• 1/2 ton to 5 ton capacities, single or three phase models
• Totally enclosed steel plate construction with a durable powder coat finish
• All models standard with slip clutch overload protection
• Heavy duty ventilated motor with thermal overload protection
• 3 phase models feature reverse phase protection
• All models come equipped with a chain container
• Reliable DC electro-magnetic brake holds the load even if the power is interrupted
• Quick connect wiring for power and push button controls
• Upper and lower limit switches prevent over travel
• Durable 24V push button control station with cable strain relief
• Complies with OSHA, ANSI/ASME B30.16 and HST-1 standards
• Each hoist is tested is proof tested before shipping and supplied with a test certificate

Chain Hoist, Prewired Electric, Jet, 2 1/7 HP Power Rating, 2 Ton Capacity, 22 1/2 Inch Length, 22.2 Inch Width, 14.8 Inch Height, 28 1/8 Inch Headroom, 8 mm Chain, 18 min continuous in 1 hr, or 1 min on, 4 min off Continuous Run Time, 230/460 V, 3 Phase Motor, 20 ft Lifting Height Max., 12.4 FPM Lifting Speed, Steel with durable powder coat Material, 2 Falls, Standard: ANSI/ASME B30.16, HST-1, OSHA, 30% duty cycle, For Commercial and Industrial, Lifting and hoisting heavy loads, 176.50 lb
