3°, 5° & 7° Patternmakers Plunge Bit

SKU
42420-group
Grouped product items
Product Name Qty Type Angle(a°) Diameter(D) Diameter(D1) Flutes Material Max. RPM Shank(d)
Amana Tool 42420 1/2" Carbide Tipped Patternmakers Router Bit
$48.02
Router Bit 3 Deg 1/2" 3/8" 2 Carbide Tip 28,000 RPM 1/2"
Amana Tool 42422 19/32" Carbide Tipped Patternmaker Router Bit
$67.25
Router Bit 5 Deg 19/32" 3/8" 2 Carbide Tip 28,000 RPM 1/2"
Amana Tool 42424 13/16" Carbide Tipped Patternmakers Router Bit
$67.25
Router Bit 7 Deg 13/16" 3/8" 2 Carbide Tip 28,000 RPM 1/2"
Amana Tool 47144 3/4" Carbide Tipped Patternmakers Router Bit
$83.72
Router Bit 3 Deg 3/4" 1/2" 2 Carbide Tip 1/2"
Out of Stock?

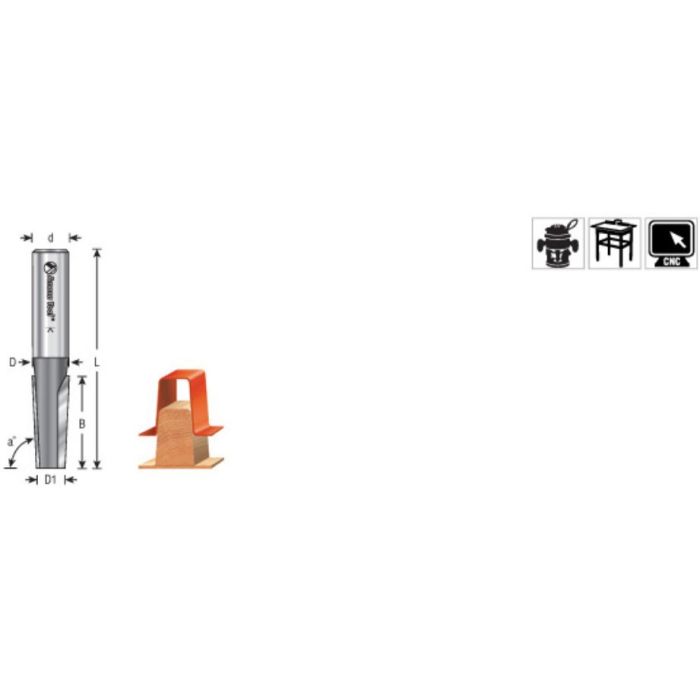

This slightly tapered bit is specifically designed for wood patternmaking, especially wood vacuum-forming molds where draft (3, 5 and 7° taper) is required for releasing the styrene or other plastic from the mold. It can be used to bevel the leading edge on a door.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ConditionNew
