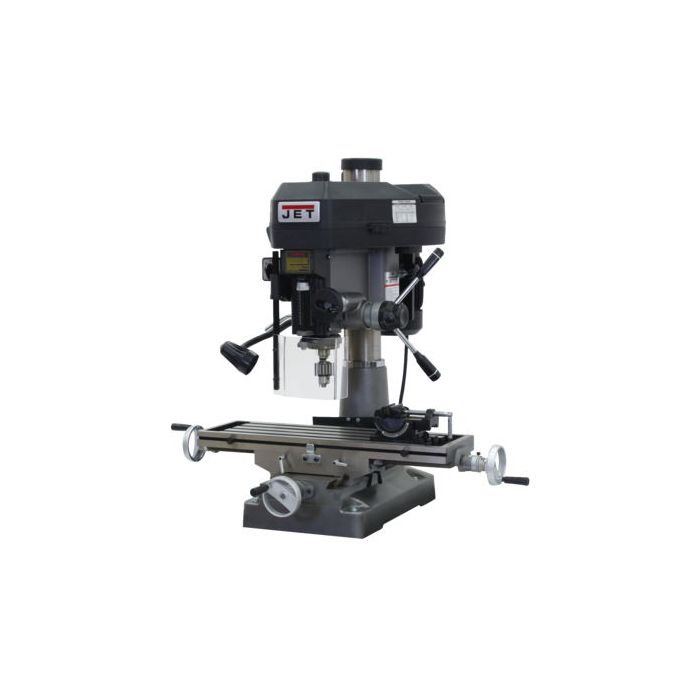

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD milling drilling machines possess the advantages of space-saving versatility, affordability and light machining capability.
WARNING: Proposition 65 Warning for California Residents View Details
Manufacturer | Jet |
---|---|
Condition | New |
UPC | 66275510390 |
Features |
|
PDFs | |
Motor Phase | 1 Ph |
Warranty | 2-Year |
Drilling Capacity | 1-1/4" |
---|---|
Face Mill Capacity | 3" |
End Mill Capacity | 3/4" |
Swing | 15-7/8" |
Max Distance Spindle to Table | 17-1/2" |
Spindle Taper | R-8 |
Spindle Travel | 5" |
Quill Diameter | 3" |
Column Diameter | 4-1/2" |
Number of Spindle Speeds | 12 |
Range of Spindle Speeds | 150 - 3000 RPM |
Table Size (L x W) | 9-1/2" x 32-1/4" |
Table Longitudinal Travel | 20-1/2" |
Work Table Weight Capacity | 400 lbs |
T-Slots Number and Size | 4" and 5/8" |
T-Slot Centers | 1-13/16" |
Base Dimensions | 15-3/4" x 23-3/4" |
Motor Horse Power | 2 HP |
Motor Voltage | 115/230 V |
Length | 42-1/2" |
Width | 39-3/4" |
Height | 43-1/2" |
