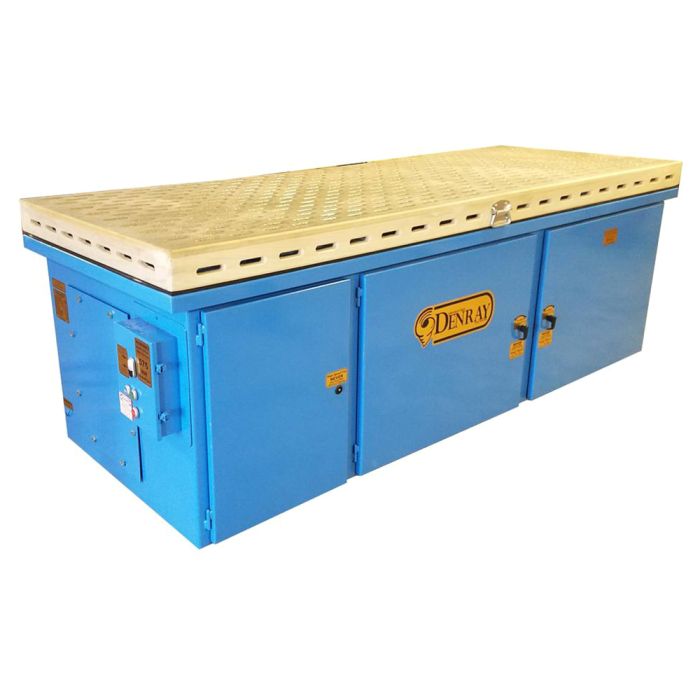

Denray 3696B 36" x 96" Downdraft Cartridge Filter System

SKU
3696B
$14,370.00
Ships direct from manufacturer?

This model is ideal for medium and large sized jobs and is accommodating for two or three jobs going on at the same time on the same table. The 3696B is one of the larger tables in Denray's push-button cleaning line. This model comes standard with 80/20 cartridge filters which clean with a 99.95 Percent capture rate at .5 micron, along with a magnetic starter and rubber coated top.

*Please note that the starter box on this model is on the left side of the machine.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Denray
Condition New
Features

Additional Options:

  • Explosion proof motor (3 Phase only)
  • Light bar
  • Casters
  • Auto-timer
  • Muffler (reduces sound level 10-12 dbs.)
  • 100% Spunbond polyester filters
  • Carbon filter bank (odor only)
  • HEPA filter bank
  • Three-sided hinged safety shield
  • ​HDPE plastic tabletop
  • Hydraulic height adjustment
  • Larger motor/fan upgrade
Type Downdraft Cartridge Filter System
Size 36" x 96"
Height 36"
Weight 985 lbs
Motor Horsepower 5 HP
Fan Type ​18"
Fan Size Comfri
Cubic Feet per Minute 4800 CFM
Noise Level 82 Decibels Sound
Switch Type A16S2
Filter Number EO 6065

Phase/Voltage Options

Phase/Voltage Options 220 Voltage (23 Amps)
Three-Phase 230 Voltage (13.4 Amps) 460 Voltage (6.7 Amps) 575 Voltage (5.3 Amps)
