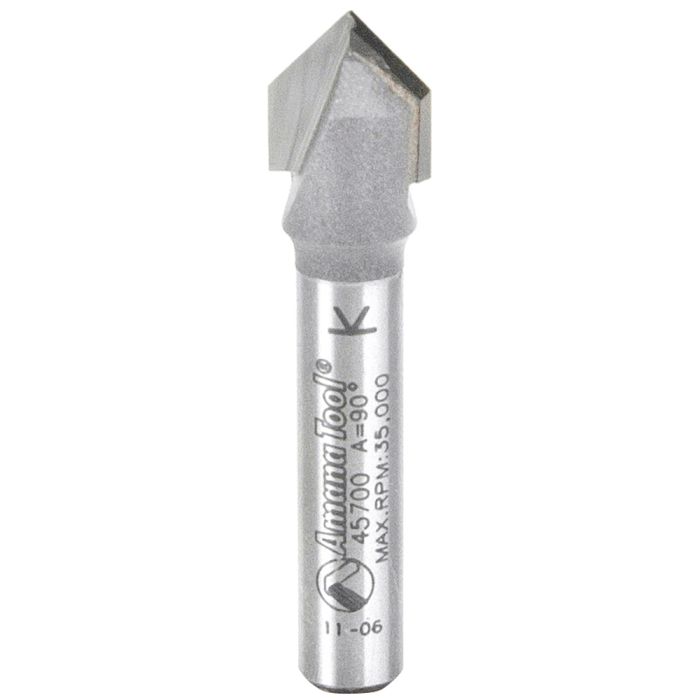

Amana Tool 45700 3/8" Carbide Tipped V-Groove Router Bit
In Stock
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| UPC | 73868585700 |
|---|
| Flutes | 2 |
|---|
| Material | Carbide Tip |
|---|
| Type |
Router Bit |
| Angle (a°) |
90 Deg |
| Diameter (D) |
3/8" |
| Cutting Height (B) |
3/16" |
| Cutting Height (B1) |
7/16" |
| Shank Diameter (d) |
1/4" |
| Overall Length (L) |
1 5/8" |
| Maximum Speed (RPM) |
35,000 RPM |
| Style |
V-Groove |
| IPM* / Chip Load Per Tooth (Hardwood) |
90" / 0.0024" |
| IPM* / Chip Load Per Tooth (Softwood) |
90" / 0.0024" |
| IPM* / Chip Load Per Tooth (Plastic) |
90" / 0.0024" |
| IPM* / Chip Load Per Tooth (Plywood) |
90" / 0.0024" |
| IPM* / Chip Load Per Tooth (MDF) |
180" / 0.0048" |
| Suitable for Use with |
Handheld, Table-Mounted and CNC Routers |
| Application |
20 lbs High Density Urethane, Acrylic, Composites, Composite Decking, Foam, Laminate, MDF/HDF, Melamine, Plywood, PVC Plastic, Sign Board, Solid Surface, Veneered Plywood, Wood, Xanita Board |
