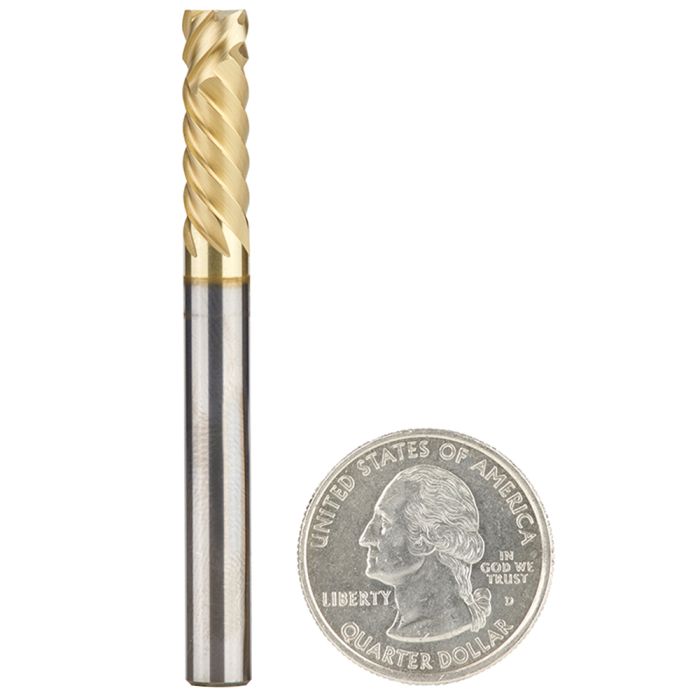

Amana Tool 46302 1/4" Solid Carbide ZrN Coated Honeycomb Cutting Router Bit

SKU
46302
$99.56
Ships direct from manufacturer ?

Solid carbide honeycomb cutting router bits provide a burr-free top and bottom finish, providing that the workpiece is thicker than 0.250”. Designed for cutting Bioboard, Falconboard, Aluminum Honeycomb (AHP) carbon fiber and honeycomb cardboard.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
Features
  • Excellent for Cutting:
  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Aluminum Honeycomb Panel (AHP)
  • BioBoard
  • Carbon
  • Carbon Fiber
  • Carbon Graphite
  • Composites
  • Falconboard
  • Fiberglass Filled Plastics
  • Honeycomb Cardboard
  • Polycarbonate (Lexan)
  • Unfilled Plastics
  • Benefits of ZrN Coating
  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • High resistance to wear
  • Extended tool life
  • Less friction and heat buildup
  • High resistance to wear
  • Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan
Diameter (D) 1/4"
Cutting Height (B) 3/4"
Shank (d) 1/4"
Overall Length (L)2-1/2"
B11/4"
Max RPM28,000 RPM
Flute6
Surface CoatingZrN
