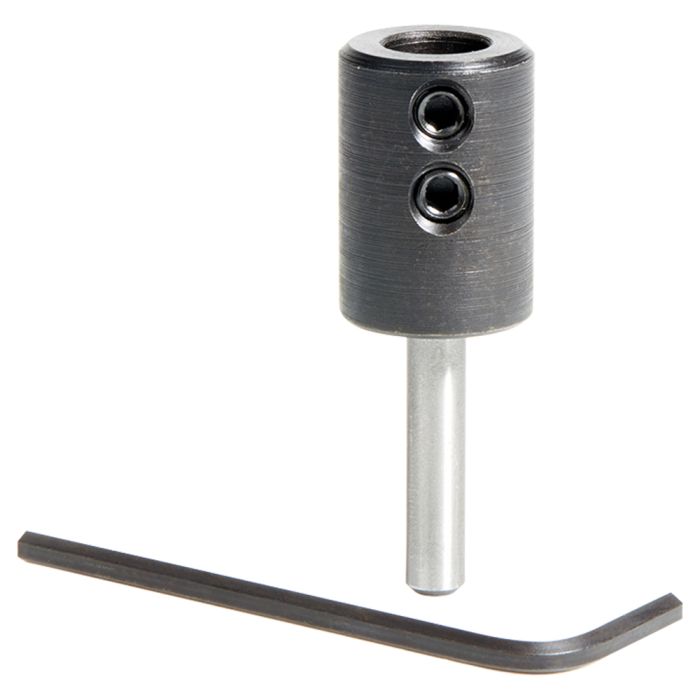

Amana Tool 47643 3/4" Dowel Drill/Boring Bit Adapter

SKU
47643
$31.13
Ships direct from manufacturer?

Made especially to run 10mm shank dowel drills and boring bits on a CNC machine. Accommodates the flat area on the 10mm round drill bit shank, secure with the 2 set screws (M6), same method as on boring machines.

Note: When securing drill bit into the adapter, make sure to align the flat part of the shank with both set screws.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685476437
TypeDrill/Boring Bit Adapter
Diameter (D) 3/4"
Shank Diameter (d) 6 mm
Overall Length (L)2 5/32"
Diameter (D1)10 mm
Overall Length (L1)1 1/16"
Suitable for Use withCNC Standard Collet/Tool Holder
Total Indicated Run-out (TIR)0.00118"
Maximum Speed (RPM)10,000 RPM
