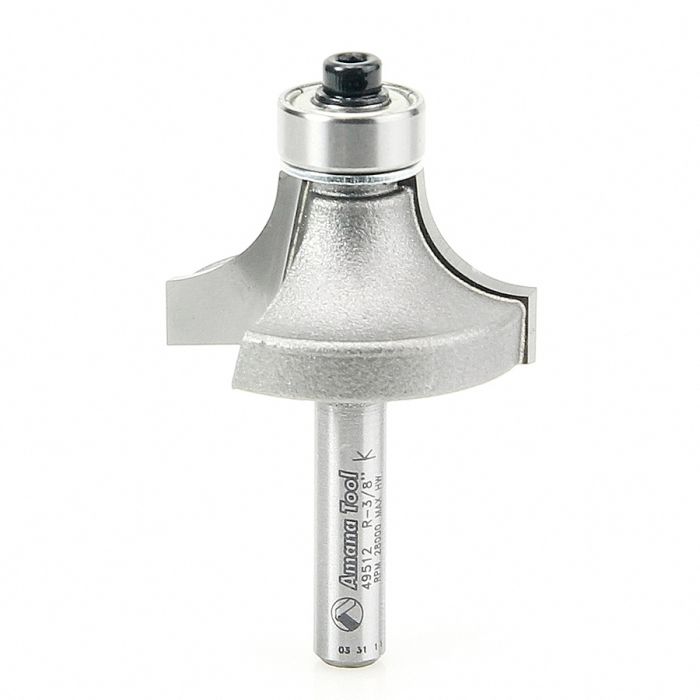

Amana Tool 49512 1-1/4" Carbide Tipped Corner Round Router Bit

SKU
49512
$40.25
In Stock

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868589512
PDFs
ApplicationFor Cutting Acrylic, Laminate, MDF/HDF, Melamine, Wood and Plywood
Replacement Bearing47706
Type Router Bit
Diameter (D) 1 1/4"
Diameter (D1) 1/2"
Radius (R) 3/8"
Cutting Height (B) 5/8"
Shank (d) 1/4"
Overall Length (L) 2 3/16"
Flutes 2
Material Carbide Tipped
Shape Cutter Type Corner Round
Maximum Speed (RPM) 28,000 RPM
Suitable for Use with Table-Mounted Router
