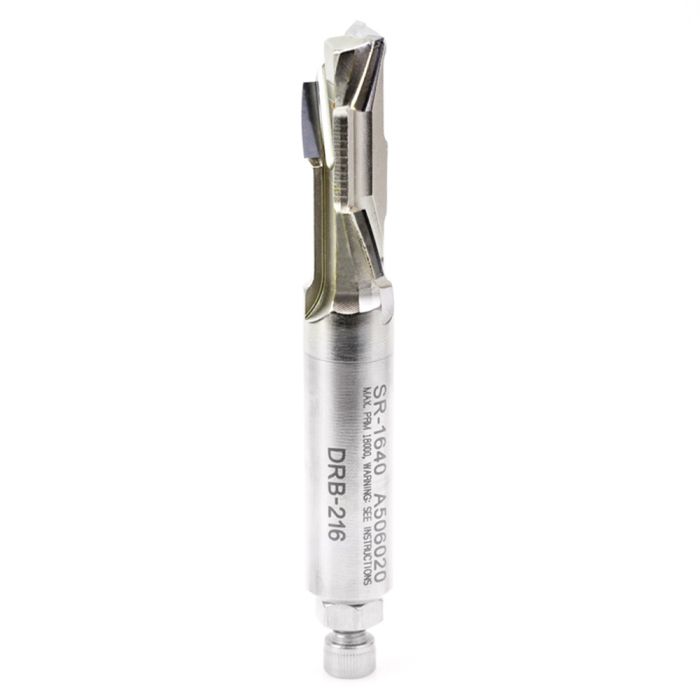

Amana Tool DRB-216 5/8" Right Hand Polycrystalline Diamond PCD Tipped CNC Router Bit

SKU
DRB-216
$275.90
Ships direct from manufacturer?

Diamond is the hardest material on the earth. Polycrystalline diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body. If we’re looking for the ultimate in tooling we’ve found it! Amana Tool's PCD tipped compression CNC router bits will groove joint and rabbet a wide variety of tough abrasive materials including composites, particleboard, MDF (both raw or with melamine), veneer and hardwoods. The cutting edge lasts much longer than carbide for extremely long life.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868521699
Features
  • Harder cutting edge provides higher resistance to wear
  • Cut thousands of feet more than carbide without changing tool saving setup time
  • Optimized machine tool efficiency
  • Quality of finish is often significantly improved
ApplicationAluminum, Aluminum Composites,Aluminum Composite Material (ACM), Composites, Composite Panels, Custom Composite Materials (CCM), Fiberglass, Fiberglass PCB Board, Fiberglass Reinforced Composites, Fiber-Reinforced Urethane, Fiber-Reinforced Structural Foa
Type CNC Router Bit
Diameter (D) 5/8"
Cutting Height (B) 1 5/8"
Shank (d) 5/8"
Overall Length (L) 4"
Length 1 3/4"
Maximum (RPM) 18,000 RPM
Rotation Right Hand
Shear Up/Down
Material Polycrystalline Diamond (PCD) Tipped
Cross Grain Veneer Maximum RPM x 0.7%
Chipboard without Coating Maximum RPM x 1.1%
MDF Maximum RPM x 0.8%
No of Knives 1+1
