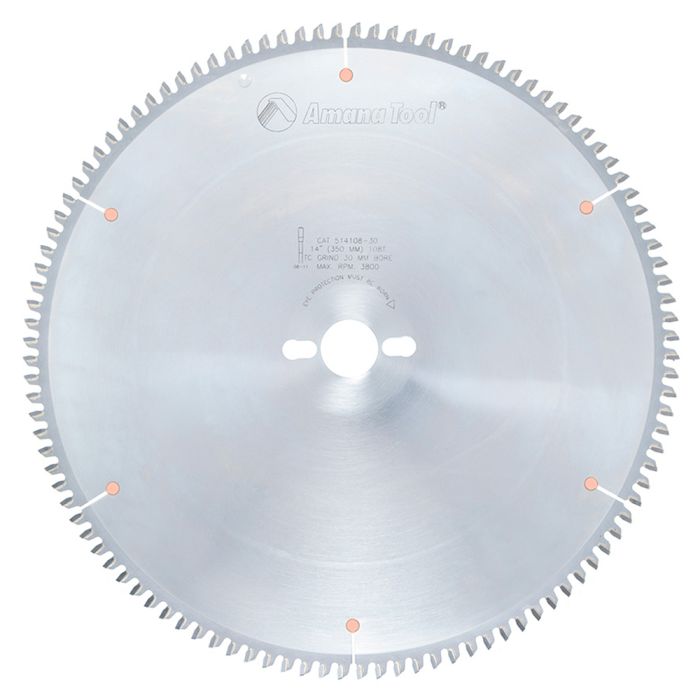

Amana Tool 514108-30 14" Carbide Tipped Aluminum & Non-Ferrous Metal Saw Blade

SKU
514108-30
$182.59
Ships direct from manufacturer ?

Its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6 degree), triple chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other "difficult" materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868554183
Features
  • For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling
ApplicationNon-Ferrous Alloys, Phenolic & Hard Plastic, Aluminum Composite Material (ACM)
Blade Diameter14"
Blade MaterialCarbide Tip
Blade Thickness (Kerf)0.126"
Tooth GrindTriple Chip Grind (TCG)
Blade TypeSaw Blade
Pinholes2/7/42, 2/9/46 & 2/10/60
Speed (RPM)3,800 RPM
Teeth Per Inch108
Plate0.102"
Arbor Size30 mm
Hook Angle-6 Deg
