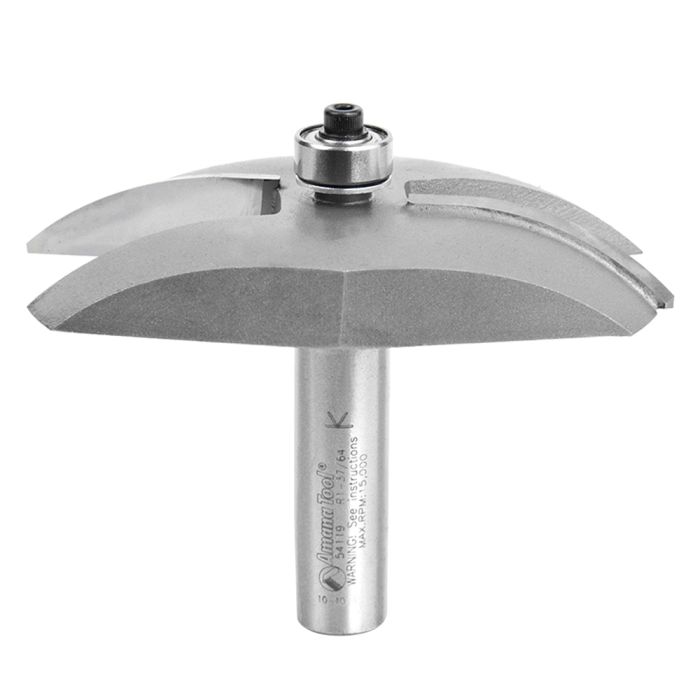

Amana Tool 54119 3-3/8" Carbide Tipped Cove Raised Panel Router Bit

SKU
54119
$167.84
In Stock
Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2 inch shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868594119
Replacement Bearing47706
Flutes2
MaterialCarbide Tip
TypeRouter Bit
Cut Depth (A)1 7/16"
Diameter (D)3 3/8"
Radius (R)1 9/16"
Cutting Height (B)1/2"
Shank Diameter (d)1/2"
Overall Length (L)2 3/8"
Maximum Speed (RPM)15,000 RPM
StyleCove Raised Panel
Suitable for Use withTable-Mounted 3+ Horsepower Router
