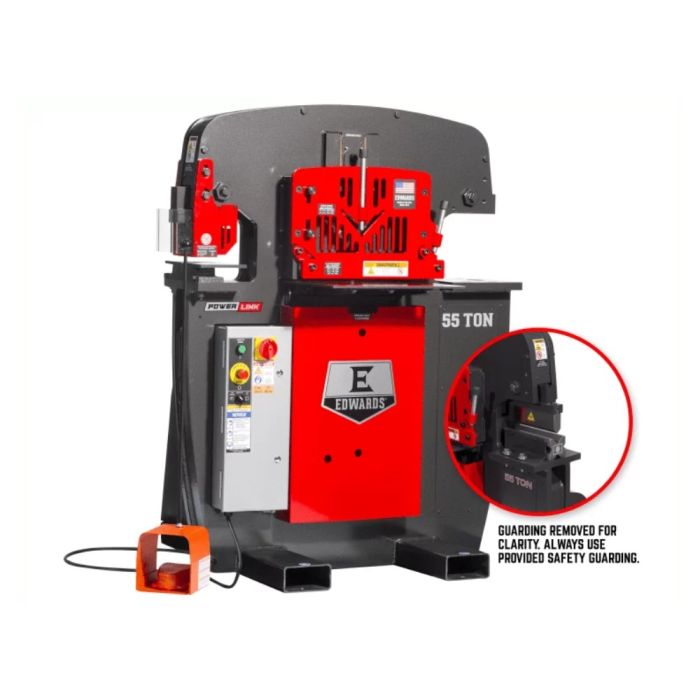

Edwards ED9-55203522 55 Ton 3Ph 208V PowerLink Hydraulic Ironworker

SKU
ED9-55203522
Special Price $17,459.10 Regular Price $19,399.00
Ships direct from manufacturer?

This 55 Ton Ironworker includes a factory-installed 10" brake, provides power for large projects, and offers the ability to customize one of its four workstations with 11 interchangeable attachments, and 17 additional accessories to help improve operator accuracy and productivity. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. Great for general use from medium size shops to full factory maintenance departments, the compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The PowerLink System increases our capabilities by turning our Ironworker into a power source for our line of Hydraulic Tools.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerEdwards Ironworkers
ConditionNew
UPC00731325763133
Features
    • Adjustable electric stoke control
    • ANSI B11.5-1988(02) Compliant Guarding
    • Bright LED lights increases visibility
    • Electric foot pedal with integrated jog control
    • ETL Certified Controls
    • Integrated Lock-out/Tag-out system with E-Stop for added safety
    • Optimized workstation heights for improved efficiency
    • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
    • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Warranty1 Year
TypeHydraulic Ironworker
Amps14 A
Angle Shear Work Height39-7/8"
Flat Bar Shear Max Square Capacity7/8"
Flat Bar Shear Work Height34-1/2"
Hydraulics (GPM)3-1/2 GPM
Hydraulics (PSI)2500 PSI
Model Number55203522
weight2430 lbs
Open Workstation Throat Depth11-3/16"
Open Workstation Work Height34-1/2"
Opt. Coper Notcher Work Height39-1/2"
Product Dimensions36-1/8" x 44-3/8" x 55-1/4"
Punch Rating (Tons)55 Ton
Punch Stroke1-1/4"
Punch Throat Depth7-1/2"
Punch Work Height36-9/16"
