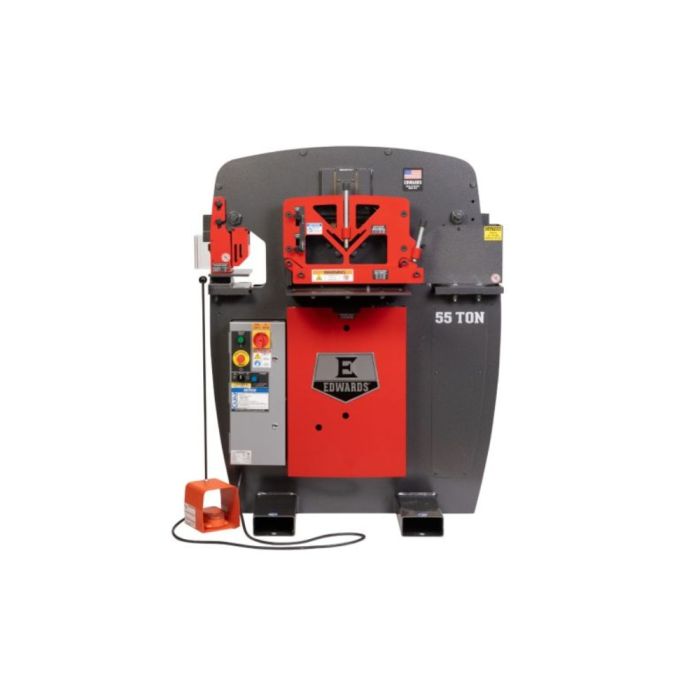

Edwards Ironworkers ED9-IW55-3P230, 55 Ton 3Ph 230V Hydraulic Ironworker
SKU
ED9-IW55-3P230
Special Price $14,696.10 Regular Price $16,329.00
Ships direct from manufacturer?
Built for high-capacity metal fabrication, the 55 Ton Ironworker with 3 Phase 230V power combines power, precision, and safety. The bright LED lighting and open-style guard improve workspace visibility, while the illuminated jog button ensures smooth, controlled operation. Four workstations and 11 interchangeable attachments allow for full customization, making it a valuable asset in shops, factories, and industrial maintenance environments. Constructed from heavy-duty USA-made steel, this machine is built to withstand continuous operation with minimal maintenance.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Edwards Ironworkers |
|---|---|
| Condition | New |
| UPC | 00731325556346 |
| Features |
|
| Horsepower | 5 HP |
| Motor Phase | 3 Ph |
| Warranty | 1 Year |
| Type | Hydraulic Ironworker |
|---|---|
| Amps | 14 Amps |
| Angle Shear Max Capacity 1/4" | 4 x 4 |
| Angle Shear Work Height | 39-7/8" |
| Flat Bar Shear Max Capacity 1/2" | 12 |
| Flat Bar Shear Max Capacity 3/4" | 4 |
| Flat Bar Shear Max Capacity | 3/8" x 14", 1/2" x 12", 3/4" x 4" |
| Flat Bar Shear Max Round | 7/8" |
| Flat Bar Shear Max Square | 7/8" |
| Flat Bar Shear Rating | 55 Tons |
| Flat Bar Shear Work Height | 34-1/2" |
| Hydraulic Pump (GPM) | 3-1/2" |
| Hydraulics (GPM) | 3-1/2" |
| Hydraulics (PSI) | 2500 Psi |
| Model Number | IW55-3P230 |
| Voltage | 230V |
| Motor Speed (RPM) | 1,725 RPM |
| Open Station Open Height | 8-1/8" |
| Open Station Shut Height | 6-7/8" |
| Open Station Stroke | 1-1/4" |
| Open Station Throat Depth | 11-3/16" |
| Open Station Work Height | 34-1/2" |
| Open Workstation Throat Depth | 11-3/16" |
| Open Workstation Work Height | 34-1/2" |
| Optional Coper Notcher Work Height | 39-1/2" |
| Overall Dimensions (L x W x H) | 36-1/8" x 44-3/8" x 55-1/4" |
| Product Dimensions | 44-3/8" x 36-1/8" x 55-1/4" |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity | 1-1/16" diam. in 5/8 mild steel |
| Punch Open Height | 8-1/8" |
| Punch Shut Height | 6-7/8" |
| Punch Stroke | 1-1/4" |
| Punch Throat Depth | 7-1/2" |
| Punch Work Height | 36-9/16" |
| Reservoir (Gal.) | 7 Gal. |
| Shipping Dimensions (L x W x H) | 45" x 51" x 62" |
| Valve Pressure (PSI) | 2750 PSI |
| Weight | 2430 lbs |
