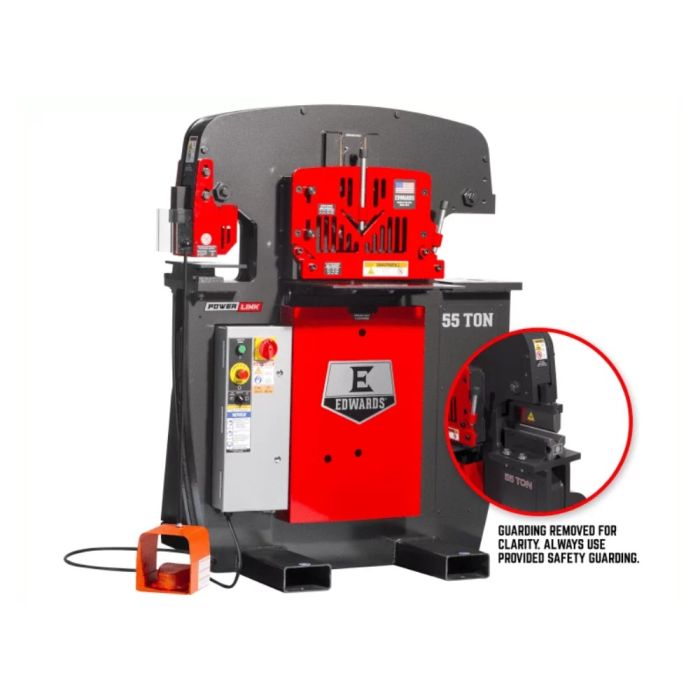

Edwards ED9-55233522 55 Ton 3Ph 230V 10" Brake PowerLink Hydraulic Ironworker

SKU
ED9-55233522
Special Price $17,459.10 Regular Price $19,399.00
Ships direct from manufacturer?

This 55 Ton Ironworker includes a factory-installed 10" brake, provides power for large projects, and offers the ability to customize one of its four workstations with 11 interchangeable attachments, and 17 additional accessories to help improve operator accuracy and productivity. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. Great for general use from medium size shops to full factory maintenance departments, the compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The PowerLink System increases our capabilities by turning our Ironworker into a power source for our line of Hydraulic Tools.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerEdwards Ironworkers
ConditionNew
UPC00731325763119
Features
    • Adjustable electric stoke control
    • ANSI B11.5-1988(02) Compliant Guarding
    • Bright LED lights increases visibility
    • Electric foot pedal with integrated jog control
    • ETL Certified Controls
    • Integrated Lock-out/Tag-out system with E-Stop for added safety
    • Optimized workstation heights for improved efficiency
    • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
    • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Horsepower5 HP
Motor Phase3 Ph
Speed (RPM)1,725 RPM
Warranty1 Year
TypeHydraulic Ironworker
Amps14 A
Amps14 A
Angle Shear Max Capacity 1/2"4 x 4
Angle Shear Max Capacity 1/4"3 x 3
Angle Shear Max Capacity 3/8"3 x 3
Angle Shear Work Height39-7/8"
Cylinder2-1/2"
Flat Bar Shear Max Capacity3/8" x 14", 1/2" x 12", 3/4" x 4"
Flat Bar Shear Max Capacity 1"12
Flat Bar Shear Max Capacity 1/2"4
Flat Bar Shear Max Capacity 3/4"4
Flat Bar Shear Max Round7/8"
Flat Bar Shear Max Round Capacity7/8"
Flat Bar Shear Max Square7/8"
Flat Bar Shear Max Square Capacity7/8"
Flat Bar Shear Work Height34-1/2"
Hydraulics (GPM)3-1/2 GPM
Hydraulics (PSI)2500 PSI
Model Number55233522
weight2430 lbs
Open Station Open Height8-1/8"
Open Station Shut Height6-7/8"
Open Station Stroke1-1/4"
Open Station Throat Depth11-3/16"
Open Station Work Height34-1/2"
Open Workstation Throat Depth11-3/16"
Open Workstation Work Height34-1/2"
Opt. Coper Notcher Max Capacity2-1/2" x 4" x 5/16"
Opt. Coper Notcher Work Height39-1/2"
Product Dimensions36-1/8" x 44-3/8" x 55-1/4"
Punch Max Capacity (In.)1-16" Diameter In 5/8" mild steel
Punch Open Height8-1/8"
Punch Rating (Tons)55 Ton
Punch Shut Height6-7/8"
Punch Stroke1-1/4"
Punch Throat Depth7-1/2"
Punch Work Height36-9/16"
Rating (Tons)55 Ton
Reservoir (Gal.)7 Gal
Shipping Dimensions (L x W x H)45" x 51" x 62"
Valve Pressure (PSI)2750 PSI
Weight2480 lbs
Motor Voltage230V
