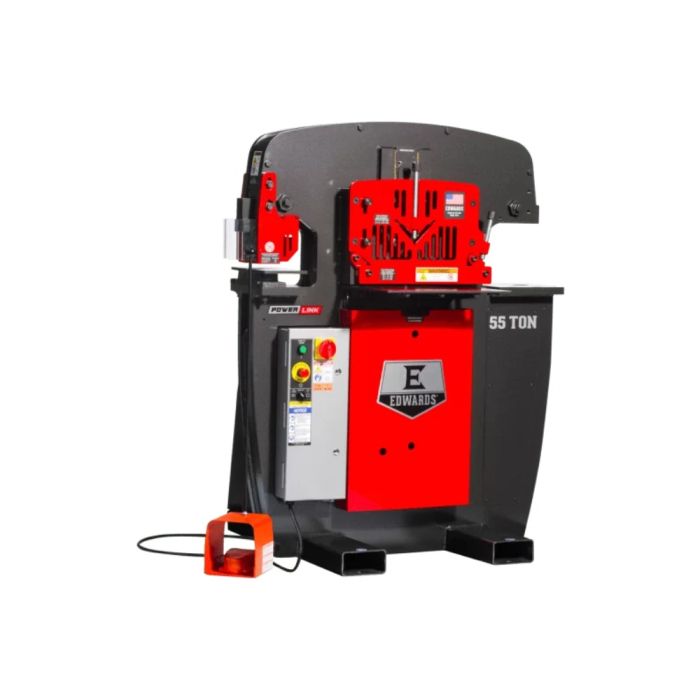

Edwards ED9-IW55-3P575-A 55 Ton 3Ph 575V Hydraulic Ironworker with PowerLink
SKU
ED9-IW55-3P575-A
Special Price $17,729.10 Regular Price $19,699.00
Ships direct from manufacturer?
The 55 Ton Ironworker provides more than enough power for larger projects and offers the ability to customize one of its 4 Workstations with 11 interchangeable Attachments. There are 17 Accessories that improve operator accuracy and productivity. Great for general use from medium size shops to full factory maintenance departments. The PowerLink System increases our capabilities by turning our Ironworker into a power source for our line of Hydraulic Tools. ETL/UL
Approved Controls.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Edwards Ironworkers |
|---|---|
| Condition | New |
| UPC | 00731325556414 |
| Features |
|
| Horsepower | 5 HP |
| Motor Phase | 3 Ph |
| Speed (RPM) | 1,725 RPM |
| Warranty | 1 Year |
| Type | Hydraulic Ironworker |
|---|---|
| Amps | 6 A |
| Angle Shear Max Capacity 1/4" | 4 x 4 |
| Angle Shear Work Height | 39-7/8" |
| Flat Bar Shear Max Capacity | 3/8" x 14, 1/2" x 12", 3/4" x 4 |
| Flat Bar Shear Max Capacity 1/2" | 12 |
| Flat Bar Shear Max Capacity 3/4" | 4 |
| Flat Bar Shear Max Round | 7/8" |
| Flat Bar Shear Max Square | 7/8" |
| Flat Bar Shear Rating (Tons) | 55 Ton |
| Flat Bar Shear Work Height | 34-1/2" |
| Hydraulic Pump (GPM) | 3-1/2 GPM |
| Hydraulics (GPM) | 3-1/2 GPM |
| Hydraulics (PSI) | 2500 PSI |
| Model Number | IW55-3P575-AC500 |
| Motor Amps | 6 A |
| weight | 2430 lbs |
| Open Station Open Height | 8-1/8" |
| Open Station Shut Height | 6-7/8" |
| Open Station Stroke | 1-1/4" |
| Open Station Throat Depth | 11-3/16" |
| Open Station Work Height | 34-1/2" |
| Open Workstation Throat Depth | 11-3/16" |
| Open Workstation Work Height | 34-1/2" |
| Optional Coper Notcher Work Height | 39-1/2" |
| Overall Dimensions (L x W x H) | 36-1/8" x 44-3/8" x 55-1/4" |
| Product Dimensions | 44-3/8" x 36-1/8" x 55-1/4" |
| Punch Max Capacity (In.) | 1-16" Diameter In 5/8" mild steel |
| Punch Open Height | 8-1/8" |
| Punch Rating (Tons) | 55 Ton |
| Punch Shut Height | 6-7/8" |
| Punch Stroke | 1-1/4" |
| Punch Throat Depth | 7-1/2" |
| Punch Work Height | 36-9/16" |
| Rating (Tons) | 55 Ton |
| Reservoir (Gal.) | 7 Gal |
| Shipping Dimensions (L x W x H) | 45" x 51" x 62" |
| Valve Pressure (PSI) | 2750 PSI |
| Weight | 2480 lbs |
| Motor Voltage | 575V |
