Powerful. Versatile. With four gears for every application. And with the best gear change you have ever operated. Whether you are working on wood, metal or masonry – thanks to the axial hammer feature that can be switched on: The TPC is extremely durable and, thanks to its brushless EC-TEC motor, has extreme resilience and endurance. The large number of attachments, combined with perfectly matched accessories, make the Quadrive an unrivalled hammer drill for a wide range of possible uses. Maintain control with our intelligent Kickbackstop which helps to minimize the risk of the drill twisting out of your hand. We are confident that this is the best drill that Festool has ever built.
WARNING: Proposition 65 Warning for California Residents View Details
Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters
Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor
Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service
For an even wider range of applications: Hammer function that can be activated for drilling into masonry
The Quadrive with four gears for every working situation: From screwdriving with 442.5 in-lbs (50 Nm) torque in first gear to precise drilling at 3600 rpm in fourth gear
Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular driving
The depth stop and eccentric adapter also enable depth-limited screwdriving and screwdriving close to edges
Flexible cordless system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution The 5.2 Ah battery pack is the right choice for even more power for particularly difficult drilling and screwdriving applications Fully covered: Needless to say, the comprehensive support provided by Festool Service also applies to battery packs
Mobile: The Quadrive comes in a Systainer³ and so can be seamlessly integrated along with other Systainer-based products for easy carry or fitted to a CT Mobile Dust Extractor, MW 1000 Mobile Workcenter, SYS-Cart, or SYS-Roll
High-Speed and Durable: The robust four-speed metal gearbox stands out in the Quadrive with its enormous power and high speeds; it can handle even the toughest tasks. The fully optimized gear change allows users to switch from any gear straight to any other in a fast and controlled manner. The latest generation of brushless EC-TEC motors enables rapid work progress and clean drilling results
Unrivalled Range of Applications: The large number of attachments, combined with perfectly matched accessories, make the TPC the most versatile hammer drill and it is unrivalled in its class. The smart FastFix interface allows the attachments to be changed quickly and without the need for any tools – for flexible drilling, driving, angular drilling and angular driving. The depth stop and eccentric adapter also enable depth-limited screwdriving and driving close to edges
Comfort with Kickbackstop: Thanks to its excellent handle ergonomics and short design, the TPC fits perfectly in your hand even for perfect control of the power. Equipped with the rotational torque-limiting Kickbackstop function which helps to reduce twisting effect to the user
For Improved Control: The electronic kickback stop prevents your wrist from experiencing excess twisting if the drill suddenly becomes caught or jammed, therefore ensuring improved control when working
The Quadrive – four gears, with the right one for every application: 1st gear: Demanding tightening of screws up to 3/8 inch (10 mm). 2nd gear: Quick screwdriving up to 5/16 inch x 11-13/32 inch (8 x 300 mm) in size. 3rd gear: Powerful drilling with auger bits of up to 3/4 inch (20 mm). 4th gear: Quick drilling with medium and small drill bits up to 1-3/8 inch (35 mm), for example Forstner drill bits
Optimized Gear Changing: Fast, safe, direct! Switching in any direction – from any gear straight to any other, without intermediate stages. Clearly marked gear positions with solid engagement
Increased power in 2nd gear: 40 percent more torque compared to the previous model for greater rotational torque with 5/16 inch (8 mm) screws
Unique system width and perfect system compatibility: Thanks to the smart FastFix interface, you can use all of the 18 V attachments from the Festool range and therefore benefit from the system advantages. No other cordless hammer drill offers this much variety
Centrotec tool chuck – for even faster bit changes: For instantly changing between drilling, countersinking and driving: The Centrotec tool chuck, which has proven itself since 2001, is a chuck and bit holder in one. Even though it is half the size and weighs 80 percent less than a standard chuck
Latest generation of brushless EC-TEC motors: The brushless EC-TEC motor is wear-free and converts the energy from the battery into optimum power with virtually no losses. The electronic motor management also guarantees maximum service life: Microprocessors monitor and control the temperature, voltage and current consumption of the motor, electronics and battery. The latest generation of EC-TEC motors provides more torque and speed under load
Practical attachments with quick angle adjustment: Very quick angle adjustment simply by rotating the green ring. The attachment doesn't need to be removed from the machine. Even the eccentric adapter for driving close to edges is equipped with quick angle adjustment
Convenient for day-to-day use: Optimised torque adjustment to meet specific demands. A robust belt clip that can be attached on both sides and a bit holder for secure and magnetic bit storage at the side of the drill
Perfect ergonomics – both compact and powerful: Thanks to its smaller circumference, the optimised handle ensures improved ergonomics and easier handling
Extra mobile with Systainer integration: Systainer³ products are compatible with one another and can be connected to all previous Systainer generations, mobile dust extractors and many other system accessories, such as Sys-Cart, Sys-Roll, or the MW 1000 mobile workshop

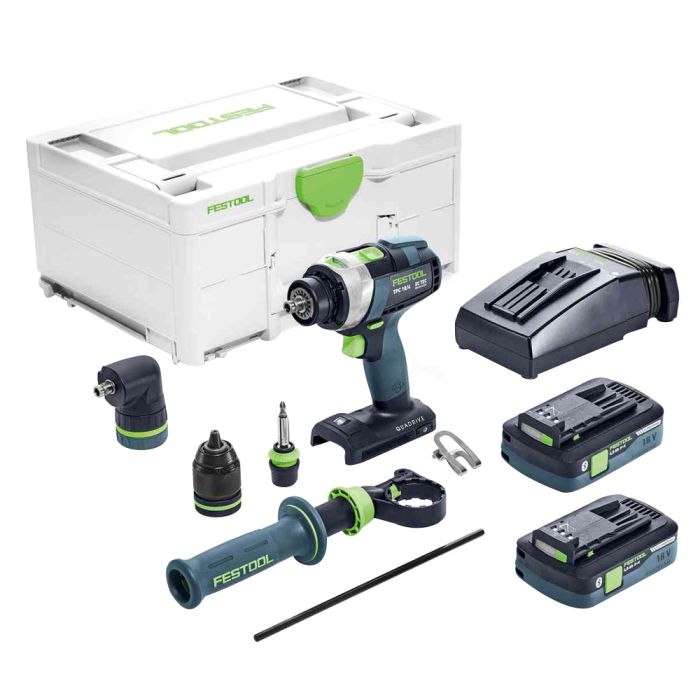

Includes
2 x BP 18 Li 4,0 HPC-ASI Battery Pack
Rapid Charger TCL 6
Additional Side-Mounted Hand Grip
Belt Clip
Bit PZ 2
Centrotec BH 60 CE Imp Magnetic Bit Holder
Centrotec Chuck
FastFix Keyless Chuck 1/2"
Systainer SYS3 M 187
FastFix Right Angle Chuck
Tool Type
Drill/Driver
Application
Production of Wooden Substructures, Frame Structures Installation of Doors and Windows, Drilling and Screwdriving In Wood, Metal and Plastic, Drive Screws Into Wood Up to 3/8" X 11-13/16" (10X300 mm), Drilling In Wood Up To 2-3/4" (70 mm) With Forstner Drill Bits, Drilling With Hammer-Mode In Brickwork or Masonry
