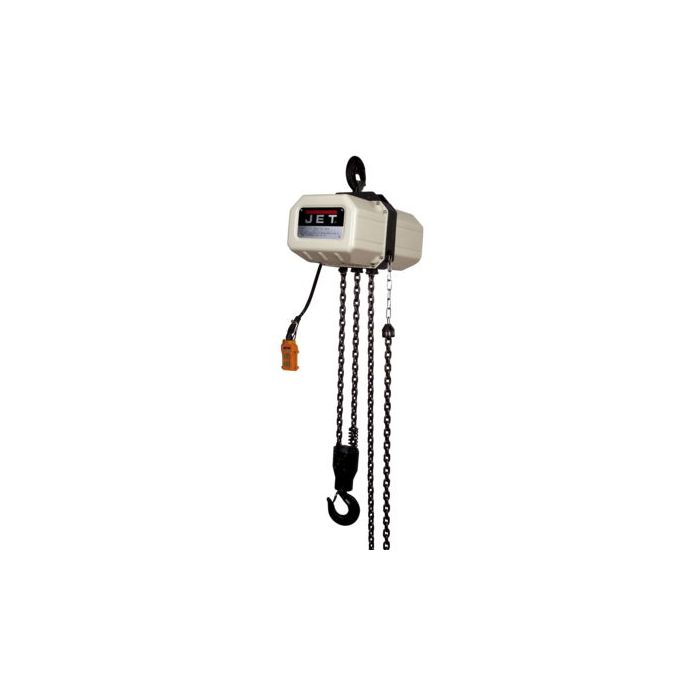

JET 530200 5SS-3C-20 5 Ton Cahin Hoist with 20' Lift, 3PH, 230V/460V PREWIRED 460V
Jet gives you a chain hoist capable of handling commercial and industrial tasks with this 5SS-3C-20 5-Ton Single-Speed 230/460 V 20 feet Electric Chain Hoist Lift (530200). It has a 5-ton capacity and is easy to install, inspect and maintain. It has a totally enclosed steel plate construction for added durability and a powder coat finish. Equipped with a chain container, its reliable DC electro-magnetic brake holds the load even if power is interrupted. The upper and lower limit switches prevent over travel, and it also has reverse phase protection.
Chain Hoist, Prewired Electric, Jet, 2 1/7 HP Power Rating, 5 Ton Capacity, 20.87 Inch Length, 24.8 Inch Width, 21.65 Inch Height, 30 11/16 Inch Headroom, 8 mm Chain, 18 min continuous in 1 hr, or 1 min on, 4 min off Continuous Run Time, 230/460 V, 3PHase Motor, 20 ft Lifting Height Max., 6.2 FPM Lifting Speed, Steel with durable powder coat Material, 4 Falls, Standard: ANSI/ASME B30.16, HST-1, OSHA, 30% duty cycle, For Commercial and Industrial, Lifting and hoisting heavy loads
| Manufacturer | Jet |
|---|---|
| Condition | New |
| UPC | 66275590652 |
| Features |
|
| Hoist Capacity (Tons) | 5 Ton |
| Hoist Max Lift Height (Feet) | 20' |
| Horsepower | 2.14 HP |
| Motor Phase | 3 Ph |
| Warranty | 2 Year Warranty |
| Caution | Be sure that the supporting structures and load attaching devices used in conjuntion with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people |
|---|---|
| Duty Cycle Rating | 30 % |
| Headroom | 30 11/16 " |
| Height | 21.65 inch |
| Hoisting Speed | 6.2 fpm |
| Length | 20.87 inch |
| Load Chain (dia.) | 8 mm |
| Model Number | 5SS-3C-20 |
| Motor Voltage | 230 / 460 V |
| Net Weight | 245 pound |
| Number of Falls | 4 |
| Part Number | 530200 |
| Web Description | 5SS-3C-20, 5 TON 3PH, 20' LIFT 230V/460V PREWIRED 460V |
| Width | 24.8 inch |
