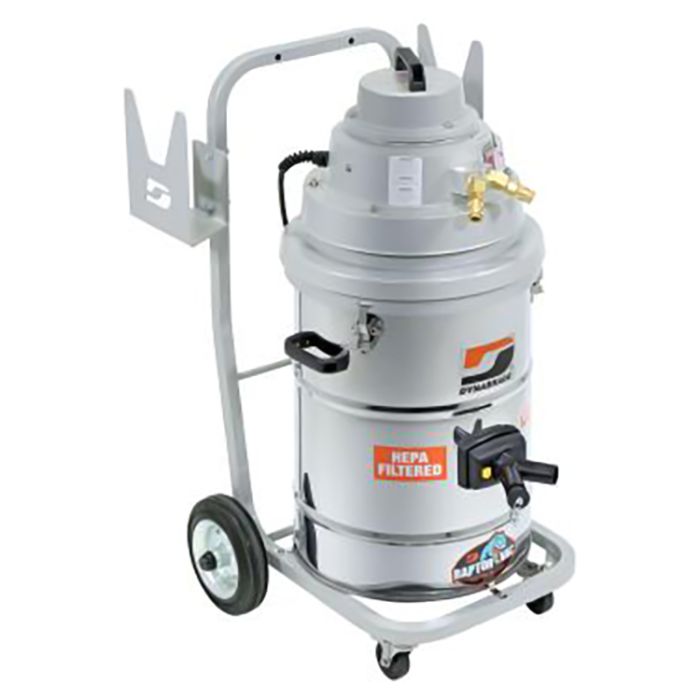

Dynabrade 61430 Raptor Vac 10G Electric Portable Vacuum System

SKU
61430
$4,259.70
Ships direct from manufacturer?
Electric Portable Vacuum for use on non-metallic surfaces such as wood and plastics. Designed for general source capture and cleanup. Powerful suction is ideal for dry-only industrial applications. Bypass motor system uses clean air to cool the motor and extend vacuum life. Two additional HEPA Filters included within power-head, making it eligible for IP6X. Top-quality stainless steel body and 10 gallon (38 liter) recovery tank. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart. Also connects to optional 61483 Cart. Dust ignition protected. Designed for Use in: Class II, Division 2, Group F (atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust), Group G (atmospheres, containing wood and plastic dusts). Not included optional conductive cleaning kit (96607); Vacuum hose, 10 ft. (3 m) length, Curved handle with extension, Round brush, Crevice tool, Small & large coarse nozzle.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerDynabrade
ConditionNew
UPC00616026614307
Includes
  • Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines
  • Y Connector
  • Two Composite Couplers
  • Two Vacuum Hose Swivel Adapters
  • Disposable Collection Bag
  • Conductive Poly Liner
Amperage20.0 Amps
ApplicationSource Capture, GP Clean-Up
Electric BrakeNo
Variable speedNo
Type Portable Vacuum System
Tank Capacity 10 Gallon
Voltage 120 V
Frequency Rate 60 Hz
Power 1200 W
Air Consumption (SCFM) 110 SCFM
Water Static Lift 107"
Height 39"
Length 27"
Weight 122 lbs
Width  20"
Auto On Off Yes
Collected Material Non-Metallic
Collection Category Division 2
Filter Rating HEPA14
Filtration Media Dry
Powered By Electric Motor
European Certifications ATEX Third Party Certified, CE EX II 1/3 D, Ex tc IIIC T200 Deg C Dc IP6X c T3
