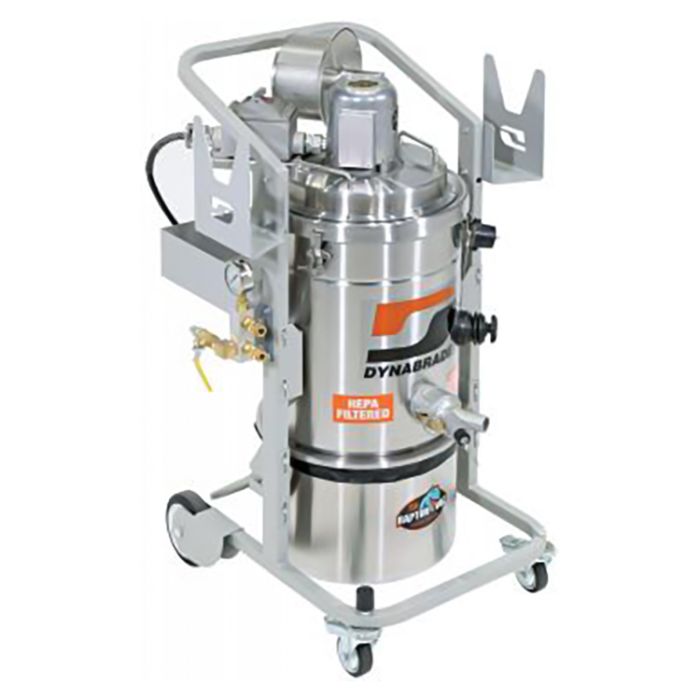

Dynabrade 61450 Raptor Vac 6.25G Electric Portable Vacuum System

SKU
61450
$11,882.70
Ships direct from manufacturer?
Electric Portable Vacuum for safe recovery of metallic dusts such as aluminum, magnesium, titanium, commercial alloys as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 5 lbs. (2.27 kg) of dust. Designed for dry-only source capture, where fine dust must be recovered. Legally certified as explosion-proof and dust ignition-proof. Filter is located downstream of the motor. Manual Filter Shaker (MFS) system. Top-quality stainless steel body and 6.25 gallon (24 liter) recovery tank. Maximum 5 pounds (2.27 kg) of metal dust recovery. Easy one-click detaching and connecting of recovery tank. Unit is static-dissipating and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart and tool basket. Guaranteed for safe recovery of combustible/conductive dusts. Ability to connect two tools simultaneously. Designed For Use In Class I, Division I, Group D T3C Class II, Division I, Groups E, F and G Hazardous locations as defined in the National Electric Code (NFPA 70). Vacuum for use in Group D atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode Group E atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys Group F atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust, Group G atmospheres, containing wood and plastic dusts.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerDynabrade
ConditionNew
UPC00616026614505
Includes
  • One 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines
  • One Composite Coupler
  • One Vacuum Hose Swivel
  • Conductive Recovery Bag
  • HEPA H14 Filter with 99.995% Efficiency on 0.3 Micron
ApplicationSource Capture, GP Clean-Up
Electric BrakeNo
Variable speedNo
Specifications
Type Portable Vacuum System
Tank Capacity (gal) 6.25 Gallon
Dust Recovery 5 lbs
Voltage/Frequency 120 V / 50/60 Hz
Collection Category Division 1
Power 1,000 W
Water Static Lift 69"
Noise Level 85 dB(A)
Air Flow Rate (CFM) 132 CFM
Tool Air Pressure (PSIG) 90 PSIG
Height 43"
Length 26"
Width 26"
Collected Material Metallic Alloys
Filter Rating HEPA14
Filtration Media Dry
Powered By Electric Motor
European Certifications ATEX, Third Party Certifiedbr> CE EX II 2 GD Ex d IIA T3 Gbbr> Ex t IIIC T 200 Deg C Db IP 6x
