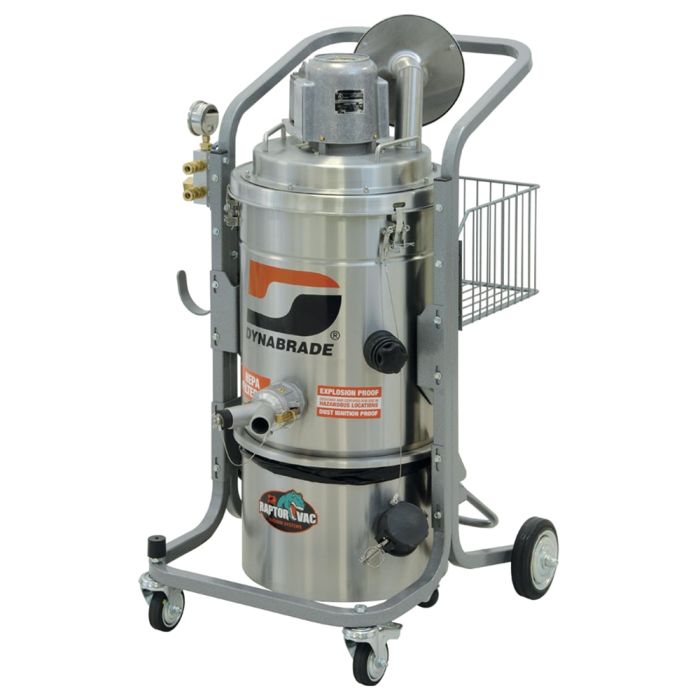

Designed for dry-only source capture, where fine dust must be recovered. Legally certified as explosion-proof and dust ignition-proof. Top-quality stainless steel body. Easy "one click" detaching and connecting of recovery tank. Unit is static-dissipating and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart and tool basket. Designed for Use in: Class I, Division 1, Group D T3C, Class II, Division 1, Groups E, F and G, Hazardous Locations as defined in the National Electric Code (NFPA 70). HEPA H14 filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor. Manual Filter Shaker (MFS) system. Vacuum for Use in: Group D: Atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode, Group E: Atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys, Group F: Atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust, Group G: Atmospheres, containing wood and plastic dusts.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Dynabrade |
|---|---|
| Condition | New |
| UPC | 00616026614512 |
| Includes |
|
| Amperage | 13.0 Amps |
| Application | For Collecting Metallic Dust and Debris Such as Aluminum and Commercial Alloys |
| Electric Brake | No |
| Variable speed | No |
| Type | Portable Vacuum System |
|---|---|
| Capacity | 6.25 Gallon |
| Dust Recovery | 5 lbs |
| Voltage | 220 - 240 V |
| Frequency | 50 - 60 Hz |
| Power | 1000 W |
| Air Pressure | 90 PSIG |
| Water Static Lift | 69" |
| Air Flow Rate (CFM) | 132 CFM |
| Noise Level | 85 dB(A) |
| Height | 43" |
| Width | 26" |
| Length | 26" |
| European Certifications | ATEX, Third Party Certified, CE EX II 2 GD Ex d IIA T3 Gb, Ex t IIIC T 200 Deg C Db IP 6x |
