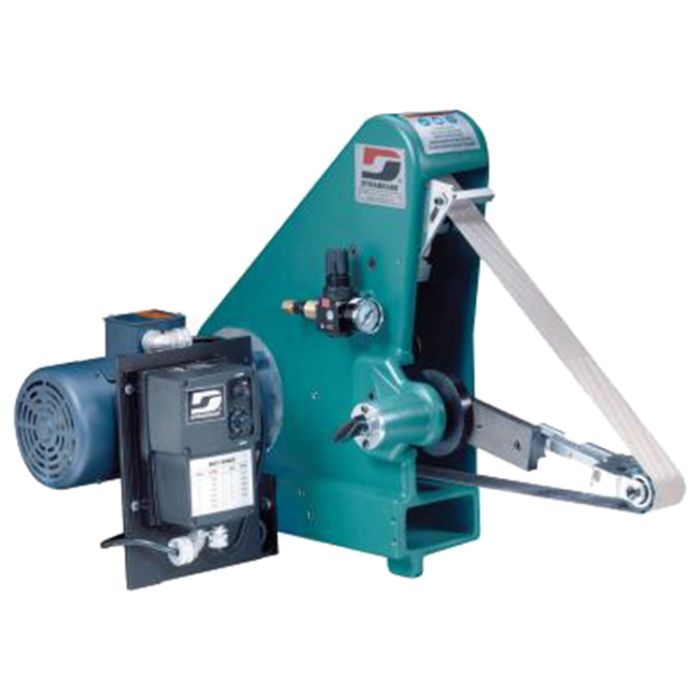

The machine has a simplified design that reduces maintenance costs by eliminating belt tension rollers. The design also allows for greater use of the abrasive belt slack areas, giving the operator flexibility to finish the workpiece in various positions for optimal efficiency. The grinder can power 72" abrasive belts with widths ranging from 1/4" to 2", offering a wide range of finishing solutions. The adjustable air belt tensioning provides constant control, and the pivoting arm assembly ensures operator comfort. The machine also has an efficient through-housing 4" vacuum port for dust control, with an optional vacuum scoop (64932).
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Dynabrade |
|---|---|
| Condition | New |
| UPC | 00616026648623 |
| Includes |
|
| Application | For Use On Castings and Forgings, Turbine Blades, Medical Implants, Investment Castings and More |
| Horsepower | 3 HP |
| Warranty | 1 Year |
| Type | Versatility Grinder |
|---|---|
| Frequency | 50/60 Hz |
| Maximum Speed (SFPM) | 2000 - 8000 SFPM |
| Voltage (AC) | 230 V |
| Motor Phase | 3 Ph |
| Height | 22" |
| Length | 33" |
| Weight | 120 lbs |
| Width | 17" |
| Belt Width | 1/4" - 2" |
| Belt Length | 72" |
