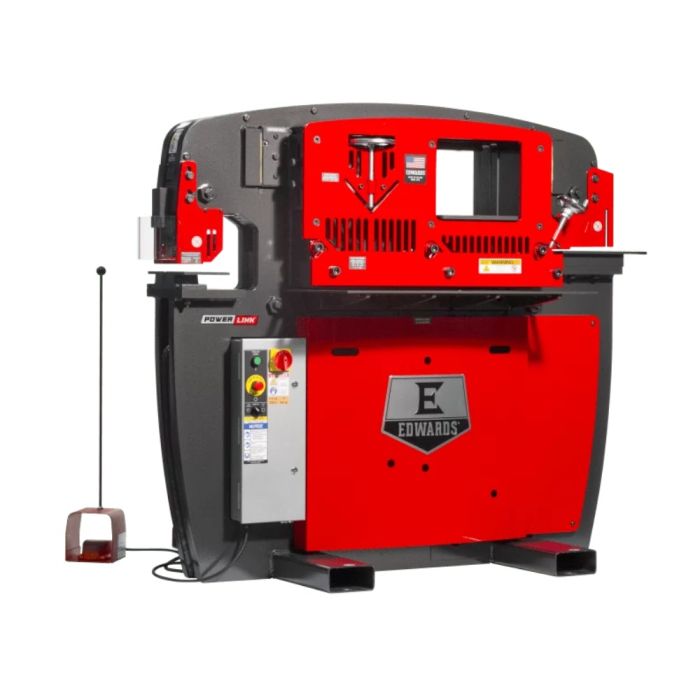

Edwards ED9-IW65-3P230-A 65 Ton 3Ph 230V Hydraulic Ironworker with PowerLink
SKU
ED9-IW65-3P230-A
Special Price $28,259.10 Regular Price $31,399.00
Ships direct from manufacturer?
The 65 Ton is the ultimate mid-range Ironworker. Flexible enough to handle a wide variety of projects, this 5 workstation machine is extremely versatile. It allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine. Other features include an electric foot pedal with integrated jog control, bright LED lights to increase visibility and heavy-duty Made in USA steel construction. The PowerLink System increases our capabilities by turning our Ironworker into a power source for our line of Hydraulic Tools. Accepting 14 interchangeable Attachments and 17 Accessories allows an operator to improve productivity and accuracy.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Edwards Ironworkers |
|---|---|
| Condition | New |
| UPC | 00731325556612 |
| Features |
|
| Horsepower | 7.5 HP |
| Motor Phase | 3 Ph |
| Speed (RPM) | 1,765 RPM |
| Warranty | 1 Year |
| Type | Hydraulic Ironworker |
|---|---|
| Amps | 22 A |
| Angle Shear Max Capacity 3/8" | 5 x 5 |
| Angle Shear Work Height | 43-1/2" |
| Coper Notcher Max Capacity | 2-1/2" x 5" x 3/8" |
| Coper Notcher Work Height | 39-1/2" |
| Flat Bar Shear Max Capacity | 3/8" x 24", 1/2" x 14", 1" x 4" |
| Flat Bar Shear Max Capacity 1/2" | 14 |
| Flat Bar Shear Max Capacity 3/8" | 24 |
| Flat Bar Shear Max Round | 1" |
| Flat Bar Shear Max Round Capacity | 1" |
| Flat Bar Shear Max Square | 1" |
| Flat Bar Shear Rating (Tons) | 65 Ton |
| Flat Bar Shear Work Height | 34-1/2" |
| Hydraulic Pump (GPM) | 10-1/2 GPM |
| Hydraulic Reservoir (Gallon) | 17 Gal |
| Hydraulics (GPM) | 10-1/2 GPM |
| Hydraulics (PSI) | 3500 PSI |
| Model Number | IW65-3P230-AC600 |
| Motor Amps | 22 A |
| weight | 4655 lbs |
| Overall Dimensions (L x W x H) | 45" x 62-1/8" x 57" |
| Punch Max Capacity (In.) | 1-1/16" Diameter in 3/4" mild steel |
| Punch Open Height | 8-3/4" |
| Punch Rating (Tons) | 65 Ton |
| Punch Shut Height | 6-15/16" |
| Punch Stroke | 1-13/16" |
| Punch Work Height | 36-9/16" |
| Rating (Tons) | 65 Ton |
| Reservoir (Gal.) | 17 Gal |
| Shipping Dimensions (L x W x H) | 46" x 69" x 63" |
| Valve Pressure (PSI) | 3500 PSI |
| Weight | 4750 lbs |
| Motor Voltage | 230V |
