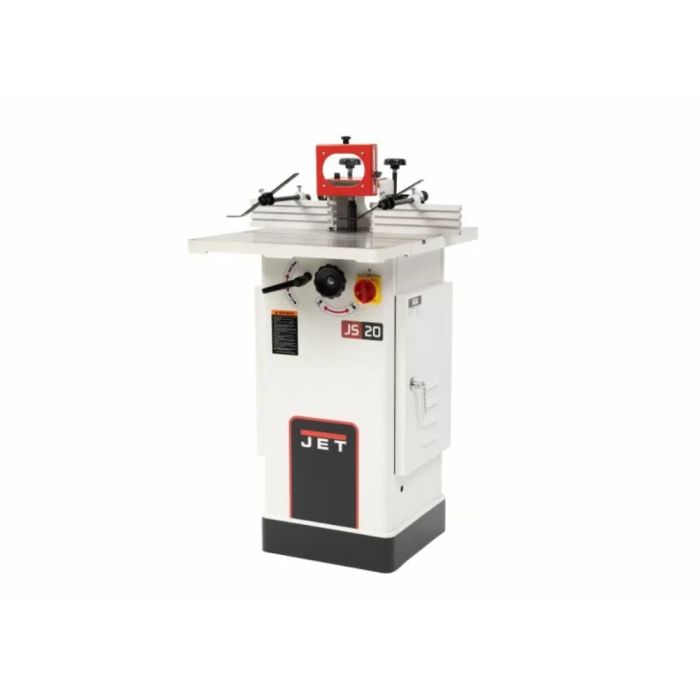

Jet JT9-724020 JWS-20CS, 20" 1.5HP 1Ph Spindle Shaper

SKU
JT9-724020
$2,353.00
Ships direct from manufacturer ?

If you're looking for a space-saving shaper for Our shop, the JET JWS-20CS Shaper is what we Need. This compact powerhouse features an 8,000 and 10,000 RPM reversing 1-1/2HP motor. The sleek 18"(L) X 20"(W) precision-ground cast iron table provides a durable work area for various projects. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment, and a built in 4” dust port. When add the new JET JWS-20CS Shaper in Our shop today, you'll know why JET products are "Built Better to Build Better".

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
Features
  • Powerful 1-1/2 HP motor delivers dependable power, even on heavy jobs
  • Independent left and right fences feature micro-adjustment and have zero-clearance capability
  • Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
  • Forward/reverse switch for left and right hand operation
  • Extra-large handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
  • 1/2" and 3/4" interchangeable spindles and router bit collets for use with shaper cutter and router bits
  • Two adjustable work hold-downs to secure Our work while shaping
  • Two reversible spindle speeds lets we select the best speed and torque for different cutter diameters
Horsepower1.5 HP
Motor Phase1 Ph
Warranty5 Years
TypeSpindle Shaper
Dust Collection Minimum CFM Required (CFM)300 CFM
Dust Port Outside Diameter4"
Electrical ControlsManual
Fence Size (L x H)10" x 3"
Model NumberJT9-724020
Motor Amps15/7.5 A
Motor Voltage115/230 V
Prewired Voltage115 V
ReversibleYes
Router Bit Collet Included1/2
Spindle Speed8,000 & 10,000 RPM
Spindle Travel2"
Style (Type)Floor standing Model
Table Height from Floor33-1/2"
Table Size (L x W)18" x 20"
Weight198
