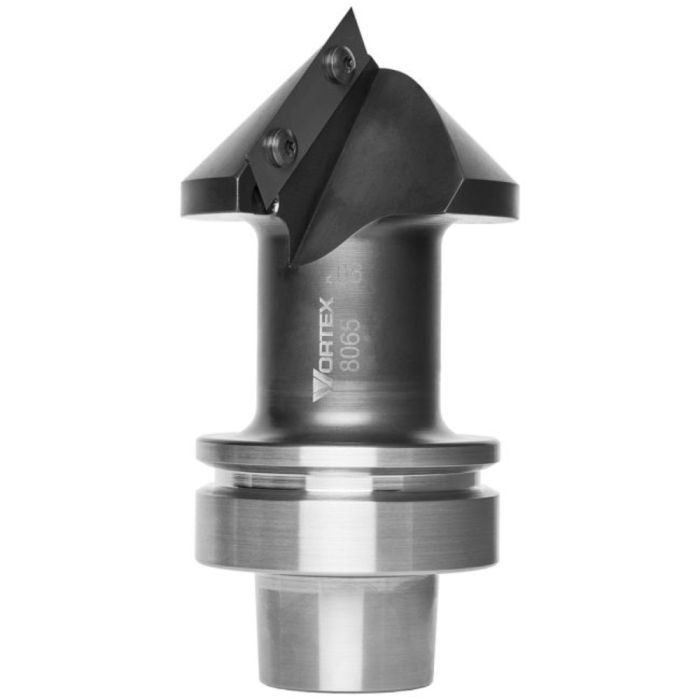

Vortex Tool 8065-KIT, 8065 Body V-Groove Cutter Kit w/IVB 50 Insert

SKU
8065-KIT
$954.06
Ships direct from manufacturer ?

Vortex now offers the reliable performance of our 7000 series V-groove in an Integrated tool design. This design eliminates the need to purchase a dedicated collet and toolholder for a shank style tool. It also provides greater accuracy for precise V-groove cuts. The machined seat pocket increases location surfaces for easy insert replacement and assures repeatability over other designs. The tool body comes with the necessary insert, screws and wrench.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerVortex Tool
ConditionNew
Includes
  • 1 - 8065 – 45°/90° Integrated HSK 63F V-Groove Tool
  • 1 - IVB-50 - Inserts
  • 1 - 7000W - T15 Torx Driver Wrench
  • 2 - 67115 - 4mm Button Head Screw
Angle(a°)45 Deg
Diameter(D)3"
Shank(d)3/4"
TypeV-Groove Cutter Kit
Depth of Cut (C)1.25"
Included Angle90 Deg
Insert #IVB-50
TaperHSK63F
