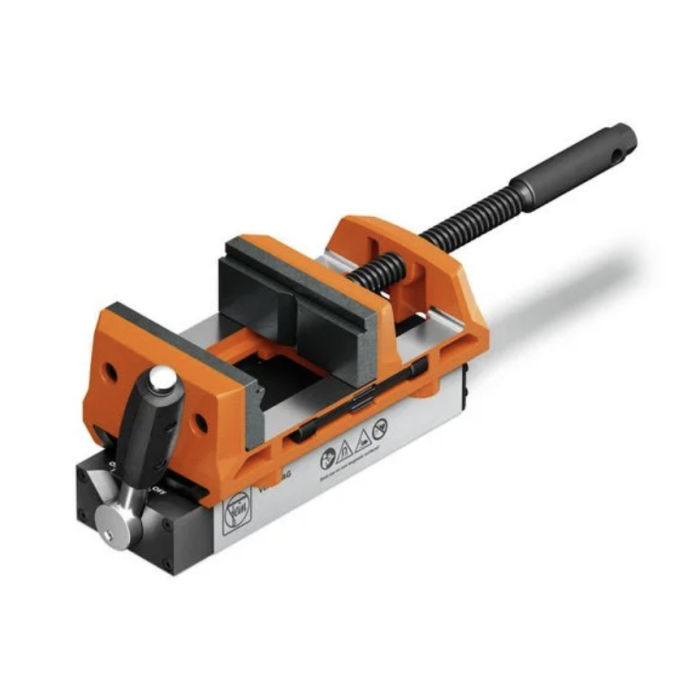

FEIN 90701004020 VersaMag Vise Set

SKU
90701004020
$599.95
Add-on Products:
Product thumbnail
Fein 32422420010 2-3/8" Raising Jaws for Fein VersaMAG Vise
$49.95
Close
In Stock
  • Portable, flexible, ready for fast use. Its compact size and narrow permanent magnet adapts to any workstation.
  • Optimizes any workstation: Clean and safe working with a wide range of options for use.
  • Modular system: The unique modular system ensures a secure hold in a variety of work situations and can always be extended with the required accessories.
  • The vise has a clamping range of 4-1/4 [108] in[mm] and a jaw width of 4 [100] in[mm].
  • Interchangeable clamping jaws in various heights for clamping larger materials such as sheet metal and pipes.
  • With an innovative two-rotor system, up to 1,754 lbf holding force for secure clamping to all magnetic surfaces – even in the thin sheet range [from 5/32[4] in[mm] thickness].
  • Clamping in tight spaces or level vertical surfaces? With its compact design and extra-narrow permanent magnets, challenging job sites are made a lot easier.
  • Precise alignment of the permanent magnets with the aid of 30% pre-magnetization.
  • Secure clamping of components for further processing with different power tools, e.g. angle grinders, screw guns, saws, MULTIMASTER, etc.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerFein Power Tools
ConditionNew
UPC04014586896571
Features

Includes
  • 1 permanent magnet
  • 1 mounting plate
  • 1 vise
  • 1 Allen key 3 mm
  • 1 safety strap
PDFs

PRODUCT DATASHEET

MANUAL INSTRUCTION

Specifications
  • Jaw height: 1.57 [40] in[mm]
  • Jaw width:  4 [100] in[mm]
  • Magnetic holding force: 1754 [7,800] lbs[N]
  • Magnetic base dimensions:  8-3/8 [212] x2-3/4 [70] in[mm]
  • Weight:  15.98 lbs
