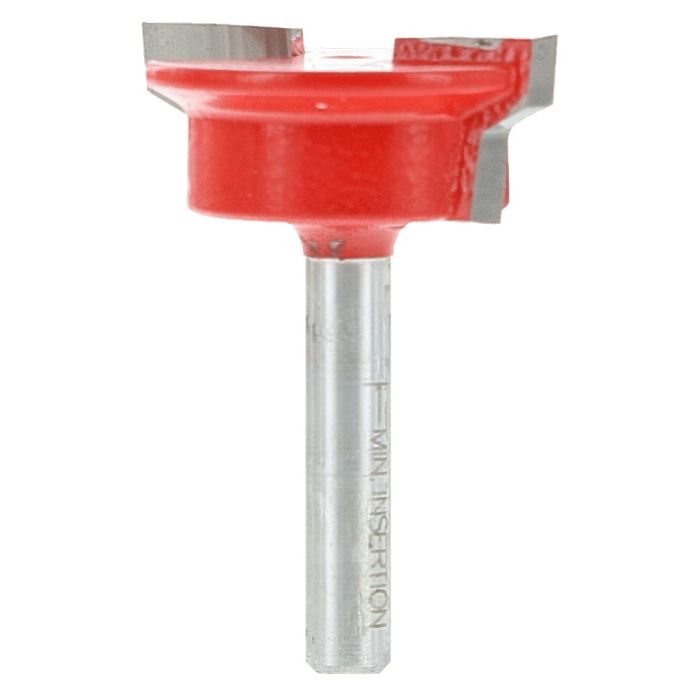

Freud 99-239, 1-1/4" x 1-3/4" Drawer Lock Router Bit

SKU
99-239
$40.93
Ships direct from manufacturer ?

The cleverly-designed Drawer Lock Bit produces both pieces of the drawer joint using a single bit. Drawer fronts are formed horizontally, flat on the table surface. Then, without adjusting the bit height, the drawer side is routed with the work piece standing vertically. The result is a strong, efficient joint between the sides and front of a drawer. Routes hardwood, softwood and composite materials; use in table-mounted routers only.

Ideal For: Building strong drawer joints in solid wood or composite materials.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerFreud
ConditionNew
Features
  • One bit produces both the front and side drawer joints
  • Cuts all hardwood, softwood, plywood and composites
  • Use on table-mounted routers only
  • Freud Perma-SHIELD Coating
ApplicationVeneered Plywood, Hardwoods, Softwoods, Composites
Diameter(D)1 1/4"
Max. RPM18,000 RPM
Overall Length(L)1 3/4"
Shank(d)1/4"
Suitable for Use WithTable Router
TypeRouter Bit
Carbide Height (H)1/2"
Minor Height (M)13/64"
Small Diameter (N)1-1/64"
