The conturo is also suitable for working when stationary. It is simply inserted via this adapter plate in the MFT/3 multifunction table or a bench we have built ourself. Not only can we affix edging to straight edges or curves, but also oblique edges with an angle between 90 degree and 45 degree because the conturo can be tilted 90 degree – 45 degree in the stationary unit.
WARNING: Proposition 65 Warning for California Residents View Details
Flexible in use, the adapter plate can be built into a self-built table frame or into the MFT perforated board provided for it
Allows the user to swivel the machine in the bench and position the workpiece horizontally during edging – for convenient and safe guidance, even with larger objects
Supplied sliding guides for guiding the workpiece safely
Perfect edging overhang when using the supplied sliding guides
Quick to install and remove the edge bander without tools
Secure fixing of the machine with slide lock
Additional roller as expansion of the pressure zone or for edging of complex shapes
Adjustable guide rail adapter for exactly parallel feeding in of the panel when edging mitres, therefore the edge doesn't run off course
Deflector that keeps the introduced edge away from the workpiece area
Start button of the machine always ideally reachable
For using the edge bander KA 65 as a bench-mounted machine
Adapter plate for installation in the MFT (with perforated board KA 65, order no. 500366) or a separate workbench
Always the Right Angle: The angle can be continuously adjusted between 0 and 47 degree using two clamping screws. Locking positions thereby help to quickly find the most important angles
Perfect Guidance: Thanks to the combination of sliding strip, adjustable guide rail adapter for exactly parallel feeding in of the panel and the additional roller, the workpiece is always guided cleanly and a perfect glued joint guaranteed
Includes

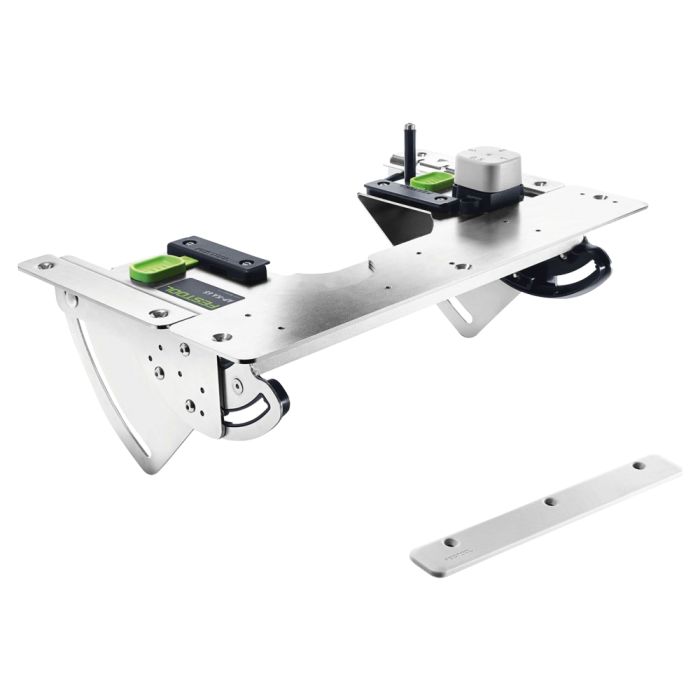

Mounting Plate for Edge Bander Complete with 15 Sliding Guides
Additional Roll
Application
For Small Series with Straight Edges, Edging of Small Free Form Elements that are Difficult to Clamp, Gluing Inclined Edges Up to 47 degree
